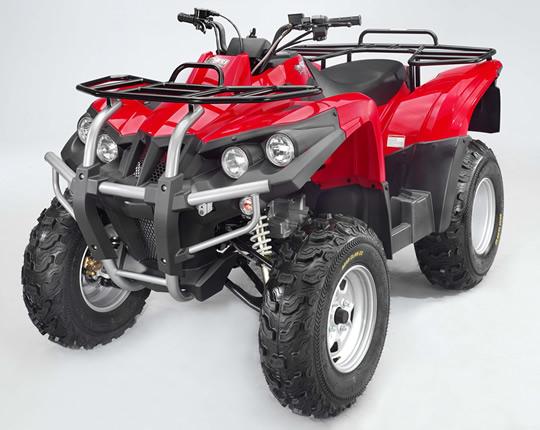

ACCESS TENA TE250U – EEC ATV Category: Electronics WishlistShare Tweet Pin It Description SPECIFICATIONS: MODEL TE250U NAME TENA 250U ENGINE Type Liquid-cooled, 4 stroke, 2 valve Cylinder Arrangement Single cylinder, vertical Displacement 249.4 c.c. Bore X Stroke Ø71 x 63 Carburetor Mikuni 26-6727 Compression Ratio 11 Iginition C.D.I. Starting System Electric Transmission CVT with reverse , H/L Gear Final Drive Chain/Oil-seal Chain 520 CHASSIS Suspension/Front Dual A-arm with 5 way preload-adjustable shocks Suspension/Rear Swing arm with preload adjustable shock Brakes/Front R/L Disc brake Brakes/Rear Disc Brake Tires/Font AT25 x 8- 12 Tires/Rear AT25 x 10- 12 DIMENSIONS Overall length 2060 mm Overall width 1215 mm Overall height 1210 mm Seat height 910 mm Wheelbase 1270 mm Ground clearance 370 mm Claim dry weight 243 kg Fuel Capacity 14.8 Liter Oil capacity 1.6 Lit. Battery GTX12-BS Lubrication System Wet sump, Oil Pump Idle Speed 1800±100 rpm Note: Specifications are subject to change without notice.
