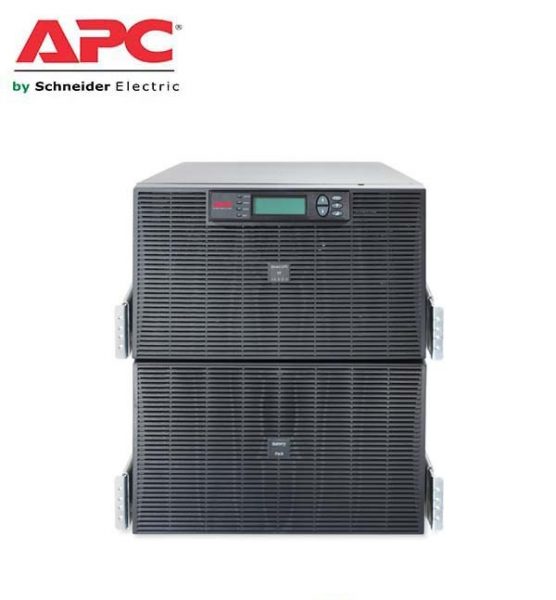

APC Smart-UPS RT 15kVA / 12kW Rack Mountable On-Line UPS 230V (12U)
Characteristics
Model Name |
APC Smart-UPS RT 15kVA RM 230V
|
Includes |
CD with software , Rack Mounting support rails , Smart UPS signalling RS-232 cable , User Manual , Web/SNMP Management Card
|
Standard Lead Time |
Usually in Stock
|
Output Power Capacity |
12.0 KW / 15.0 kVA
|
Max Configurable Power (Watts) |
12.0 KW / 15.0 kVA
|
Nominal Output Voltage |
230V
|
Output Voltage Note |
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
|
Output Voltage Distortion |
Less than 5%
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
|
Other Output Voltages |
220, 240V
|
Crest Factor |
3 : 1
|
Double Conversion Online
|
|
Waveform Type |
Sine wave
|
Output Connections |
(1) Hard Wire 3-wire (H N + G) (Battery Backup) , (1) Hard Wire 5-wire (3PH + N + G) (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C19 (Battery Backup)
|
Overload Operation |
60 seconds @ 125% and 30 seconds @ 150%
|
Bypass |
Built-in Static Bypass , Internal Bypass (Automatic and Manual) , Optional External Bypass
|
Nominal Input Voltage |
230V , 400 3PH
|
Input Frequency |
40 – 70 Hz (auto sensing)
|
Input Connections |
Hard Wire 3 wire (1PH+N+G) , Hard Wire 5-wire (3PH + N + G)
|
Input voltage range for main operations |
160 – 280 V
|
Other Input Voltages |
220 , 240
|
Maximum Input Current |
90 A
|
Input Breaker Capacity |
100 A
|
Input Total Harmonic Distortion |
Less than 5% for full load
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
Included Battery Modules |
4
|
Battery Slots Empty |
0
|
Typical recharge time |
2.5 hour(s)
|
Replacement Battery |
APCRBC140
|
RBC Quantity |
4
|
Nominal Battery Voltage |
+/-192 V (split battery referenced to neutral)
|
Efficiency in Battery Operation |
93.00 %
|
Interface Port(s) |
DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
|
Available SmartSlot™ Interface Quantity |
0
|
Pre-Installed SmartSlot™ Cards |
AP9631
|
Control panel |
Multi-function LCD status and control console
|
Audible Alarm |
Audible and visible alarms : configurable delays
|
Emergency Power Off (EPO) |
Yes
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
Maximum Height |
533.0 mm
|
Maximum Width |
432.0 mm
|
Maximum Depth |
773.0 mm
|
Rack Height |
12 U
|
Net Weight |
247.73 kg
|
Shipping Weight |
314.09 kg
|
Shipping Height |
990.0 mm
|
Shipping Width |
610.0 mm
|
Shipping Depth |
1003.0 mm
|
Master Carton Units |
0.0
|
Master Carton Weight |
0.0 lbs
|
Color |
Black
|
Units per Pallet |
1.0
|
Operating Environment |
0 – 40 °C
|
Operating Relative Humidity |
0 – 95% non-condensing %
|
Operating Elevation |
0-3000 meters
|
Storage Temperature |
-15 – 45 °C
|
Storage Relative Humidity |
0 – 95% non-condensing %
|
Storage Elevation |
0-15000 meters
|
Audible noise at 1 meter from surface of unit |
50.000 dB
|
Online Thermal Dissipation |
2800.000 BTU/hr
|
Protection Class |
IP 20
|
Approvals |
EN/IEC 62040-1-1 , EN/IEC 62040-2 , VDE
|
Standard warranty |
2 years repair or replace
|
RoHS |
Compliant
|
Battery Directive |
Compliant
|
Battery Notes |
Battery Notes
|
