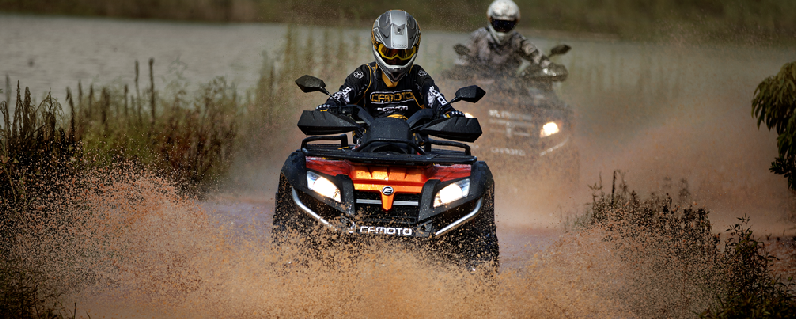

CFMOTO Terra Lander X8 Quad ATV 800cc
CFORCE800EPSFEATURES
- High performance CVTech driven clutch with wet clutch engagement and engine brake
- 14” alloy wheels
- Reliable Yuasa® AGM (Absorbent Glass Mat) sealed battery
- Aluminum A-arms front and back
- Heavy-duty front and rear storage racks
- Custom paint
- High intensity halogen headlights
- Adjustable coil-over nitrogen shocks
- Ergonomically designed rider and passenger seating and backrest
- 3000 lb. winch
- 2” hitch receiver with power socket
SPECIFICATIONS
ENGINE
| Engine Type | V-twin, 8 valve, SOHC |
| Engine Displacement | 800 cc |
| Compression Ratio | 10.3:1 |
| Fuel System | Delphi® Electronic Fuel Injection |
| Bore & Stroke | 91 x 61.5 |
| Max Power Output | 62 HP @ 6700 RPM |
| Max Torque | 53 ft lbs @ 6000 RPM |
| Cooling System | Liquid Cooled |
| Ignition | Delphi® ECU |
| Starting | Electric |
| Transmission | Wet clutch with a CVTech Secondary |
WHEELS, SUSPENSION, AND BRAKES
| Wheels (front) | 14 x 7.0″ aluminum alloy |
| Wheels (rear) | 14 x 8.0″ aluminum alloy |
| Tires (front) | 26 × 9-14″, Premium CST |
| Tires (rear) | 26 × 11-14″, Premium CST |
| Suspension (Front/Rear) | Cast aluminum, double A-Arm Independent F/R |
| Shock Absorber (Front/Rear) | Compression & rebound adjustable, gas charged |
| Brakes | Hydraulic disc |
DIMENSIONS AND WEIGHT
| Length | 93 in |
| Width | 55 in |
| Height | 46 in |
| Wheelbase | 58 in |
| Ground Clearance | 10.6 in |
| Complete Weight | 888 lbs |
STANDARD EQUIPMENT
| Fuel Tank Lock | Standard |
| 12V DC Power Plug | Dash, Standard |
| Trailer Power Port | Standard |
| Hitch / Receiver | 2 in |
| Towing Capacity | 904 lbs |
| Winch | 3,000 lbs |
