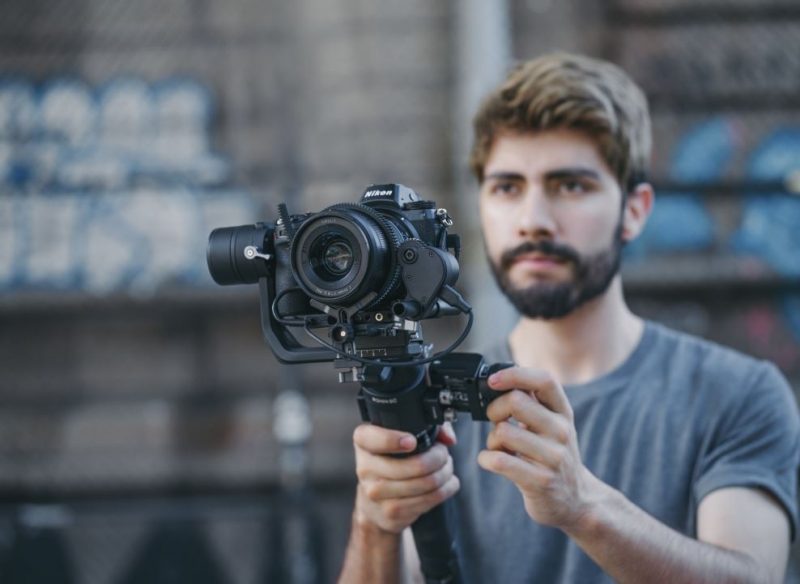

DJI™ Ronin-SC Single-Handed Stabilizer for Mirrorless Cameras
DJI Ronin-SC
Gimbal
| Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
| Rotation Range | Yaw (Pan): 360° Pitch (Tilt): 280° (-95 to 185°) Roll: 315° (-202.5 to 112.5°) |
| Follow Speed | Pan: 180°/s Tilt: 180°/s Roll: 180°/s |
| Load Capacity | 4.85 lb / 2.2 kg |
Connectivity
| Ports | 1 x USB Type-C (Power) Input 1 x CAN (Control) Input |
| Wireless Frequency | Video: 2.4 GHz (2.4 – 2.483) |
| Wireless Protocol | Bluetooth 5.0 |
Battery
| Battery Type | 1 x Built-In |
| Capacity (mAh) | 2450 mAh |
| Capacity (Wh) | 17.64 Wh |
| Battery Runtime | 11 Hours |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Voltage | 7.2 VDC |
Power
| Operating Current | 0.16 A |
Environmental
| Operating Temperature | -4 to 113°F / -20 to 45°C |
General
| Mounting | 1 x 1/4″-20 Female 1 x 3/8″-16 Female |
| Dimensions | 8.66 x 7.87 x 2.95″ / 220 x 200 x 75 mm (Folded) 14.57 x 6.5 x 5.91″ / 370 x 165 x 150 mm |
| Weight | 2.43 lb / 1.1 kg (with Handlebar) |
Remote
Packaging Info
| Package Weight | 4.9 lb |
| Box Dimensions (LxWxH) | 15 x 13 x 3.75″ |
[1] When the gimbal is folded and not connected to the BG18 Grip.
[2] Depending on actual payloads mounted to the gimbal, counterweights for balancing may be required.
[3] Force Mobile is currently only available for iOS.
[4] Monitor function only available for cameras with built-in Wi-Fi transmission.
