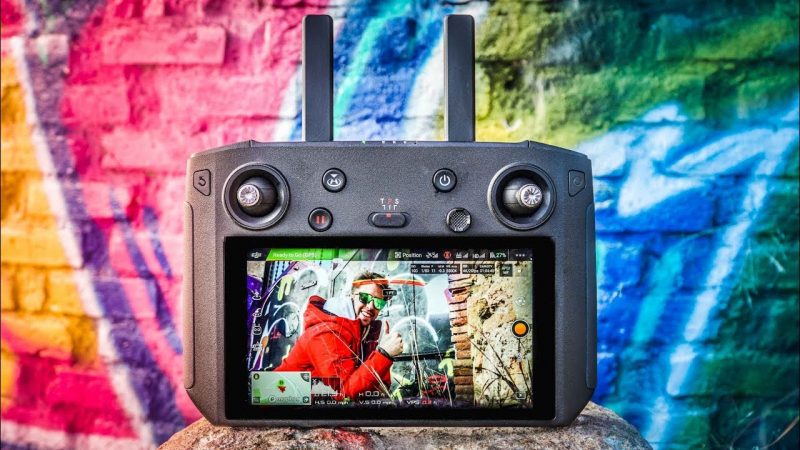

DJI Smart Controller



The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.  A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 app get you up in the air quicker, clearer, and more conveniently than ever before.

Built-in Ultra-Bright Screen

The DJI Smart Controller has a built-in 5.5-inch 1080p screen, providing an ultra-bright display to keep your live feed easily viewable, even in direct sunlight. At 1000 cd/m, the display is approximately twice as bright as conventional smart device screens.

OcuSync 2.0 Full-HD Video Transmission

Equipped with OcuSync 2.0 Full-HD video transmission technology, the DJI Smart Controller supports automatic switching between 2.4 GHz and 5.8 GHz, reducing the influence of environmental interference on drone operation and image quality. This also ensures reliable long-range transmission at distances of up to of 8 km. 2

Efficient and Portable

The DJI Smart Controller connects to your drone as soon as it’s powered on, letting you take off in no time and never miss a moment of the action. Featuring an integrated design with detachable control sticks, the DJI Smart Controller is also portable enough to bring with you anywhere.

Reliable in More Environments

The DJI Smart Controller is capable of stable operation in temperatures ranging from -20°C to 40°C, giving you reliable, HD connection with your drone in more places.

Go Share

Easily transfer your aerial photos and videos from the DJI Smart Controller to your mobile device using the DJI GO 4 app’s new Go Share function.

Customized System

The DJI Smart Controller’s customized Android system and optimized DJI GO 4 app give you freedom from the restraints of conventional mobile devices to ensure faster, focused aerial creation. The Smart Controller also supports third-party apps for a variety of additional sharing and editing options.

Excellent Audio and Video Performance

With a built-in microphone and speaker, the DJI Smart Controller can playback videos through the HDMI port at 4K 60fps on the H.264 and H.265 codecs.

More Features


The new SkyTalk feature is an amazing way to let others in on your aerial experience. Use it to live-stream your drone’s camera view directly to social media platforms like Facebook and Instagram.  It also allows you to create and share short videos instantly.

Long-Lasting Battery Life

The 5000mAh battery supports quick charging and can work continuously for up to 2.5 hours.


DJI Smart Controller Specs


Screen Size 5.5″ / 14.0 cm
Resolution 1080p (1920 x 1080)
Brightness 1000 cd/m2
OcuSync 2.0 Operation Frequency Range
2.400 to 2.4835 GHz
5.725 to 5.850 GHzMax Transmission Distance (Unobstructed, Free of Interference)
2.400 to 2.4835 GHz: 2.5 Miles / 4 km (CE, SRRC, and MIC)
2.400 to 2.4835 GHz: 5.0 Miles / 8 km (FCC)
5.725 to 5.850 GHz: 1.24 Miles / 2 km (CE)
5.725 to 5.850 GHz: 3.11 Miles / 5 km (SRRC)
5.725 to 5.850 GHz: 5.0 Miles / 8 km (FCC)

Transmitter Power (EIRP):
2.400 to 2.4835 GHz: 18.5 dBm (CE and MIC), 19 dBm (SRRC), and 25.5 dBm (FCC)
5.725 to 5.850 GHz: 12.5 dBm (CE), 18.5 dBm (SRRC), and 25.5 dBm (FCC)


Protocols Wi-Fi 5 (802.11ac)
Wi-Fi Direct
Wireless Display
Wi-Fi with 2×2 MIMO
Operation Frequency Range 2.400 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 to 5.850 GHz
Transmitter Power (EIRP) 2.400 to 2.4835 GHz: 18.5 dBm (CE & SRRC), 20.5 dBm (MIC) & 21.5 dBm (FCC)
5.150 to 5.250 GHz: 19 dBm (CE, SRRC, CE, & FCC)
5.725 to 5.850 GHz: 13 dBm (CE) & 21 dBm (SRRC & FCC)


Protocol 4.2
Operation Frequency Range 2.400 to 2.4835 GHz
Transmitter Power (EIRP) 4 dB (CE, SRRC, MIC & FCC)


Battery 18650 Li-Ion (5000 mAh at 7.2 VDC)
Charge Supports USB Power Adapters Rated 12 VDC, 2 A
Rated Power 15 W
Storage Capacity 16 GB
Card Slot microSD (Supports up to 128 GB Cards)
Charging Time 2 Hours (Using a USB Power Adapter Rated 12 VDC, 12 A)
Working Time 2.5 Hours
Video Output Ports HDMI (H.264 & H.265)
Charging Port USB Type-A (5 VDC, 900 mA)
Operating Temperature Range -4 to 104°F / -20 to 40°C
Storage Temperature Range Under 1 Month: -22 to 140°F / -30 to 60°C
1-3 Months: -22 to 113°F / -30 to 45°C
3-6 Months: -22 to 95°F / -30 to 35°C
Over 6 Months: -22 to 77°F / -30 to 25°C
Charging Temperature Range 41 to 104°F / 5 to 40°C
Supported Aircraft Mavic 2 Pro
Mavic 2 Pro
Drones that Support OcuSync 2.0
Model Number RM500
Weight 22.2 oz / 630.0 g (Approximately)

Packaging Info

Package Weight 2.45 lb
Box Dimensions (LxWxH) 9 x 8.5 x 2.5″
