Evga Dg 85 Atx Computer Case

EVGA DG 85 ATX Computer Case

Category:
Wishlist

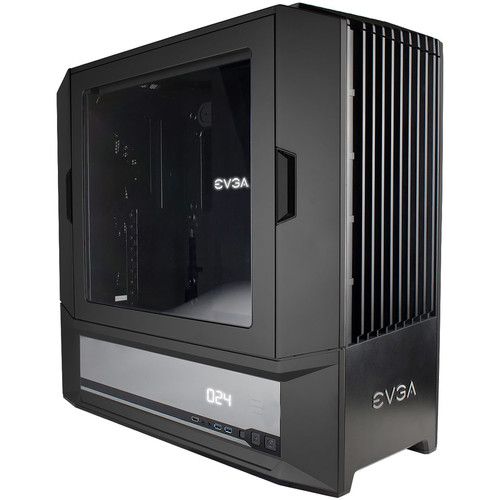

EVGA DG 85 ATX Full Tower Gaming Computer Case, Grey (100-E1-1000-K0)

Introducing the EVGA DG-8 line of full-tower cases. These cases are built for the enthusiast with an optimized airflow path that gives you dedicated cooling fans for your graphics cards, a K-Boost button that automatically boosts fanspeed and CPU/GPU, a built in fan controller and much more. These new line of cases are the ultimate platform for any gaming or graphics enthusiast. With these features and more, it is easy to see how DG means Designed for Gaming!



00:00 / 00:00



DG-8

EVGA DG-87

DG-8

EVGA DG-86

DG-8

EVGA DG-85

DG-8

EVGA DG-84

DG-8

FEATURES

DG-8Optimized Airflow Path
Dedicated cooling path for graphics cards, giving ultimate cooling performance and increased clockspeeds.
DG-8Robust Water Cooling Support
Full support for dual 420mm or 360mm radiators give you ultimate cooling performance, with a dedicated section for mounting reservoir.
DG-8Cable Management
Dedicated cable management cutout points lets you keep your system layout clean, improving appearance and airflow.
DG-8Built Fan Controller + Temperature Sensor
Built in fan controller lets you select your cooling performance, and monitor the case internal temperature.
DG-8K-Boost Button
Control your performance with EVGA K-Boost! One button boosts GPU and CPU clocks instantly, giving you ultimate control.
DG-8Removable Fan Filters
Easy to remove fan filters keeps your system dust free.
DG-8Front and Top Facing Power, Reset Buttons and USB 2.0. Front Facing USB 3.1 Type-C, and HDMI
Easily power on your system whether it is on the floor or desk, make your PC VR-Ready with front facing HDMI and USB.
DG-8Easy Removable Door
Flip a switch to remove the entire door, making assembly as easy as can be.
DG-8Supports up to 12 SSD/HDD
Dedicated mounting locations on back of motherboard and drive bay keep cables out of the way.
DG-8GPU Airflow Channel
Adjustable channel to maximize cooling efficiency depending on your GPU setup.
DG-8Optional Segmented PSU Tray Hides Cables
Slidable tray keeps your system clean and hides Power Supply cables.
DG-8Flexible Fan Support
Supports up to 8 140 or 120mm fans.
DG-8Easy Access to I/O ports and Clean Cable Output
Cables exit on the back of the case, keeping cable management clean, and I/O ports are easily accessed by left door hinge.
DG-8Completely Removable PCI-E Brackets
Remove brackets to increase airflow or easily pass water cooling tubes.

EVGA DG-8 SERIES COMPARISON CHART

Case Name EVGA DG-87 EVGA DG-86 EVGA DG-85 EVGA DG-84
Window Panel Yes Yes Yes No
Finish Metallic Gunmetal Grey Gunmetal Grey Gunmetal Grey Gunmetal Grey
Form Factor Support mITX/mATX/ATX/E-ATX mITX/mATX/ATX/E-ATX mITX/mATX/ATX/E-ATX mITX/mATX/ATX/E-ATX
Max Graphics Cards 4 4 4 4
I/O Ports (Top)
Power 1 1 1 1
Reset 1 1 1 1
K-Boost 1 1 1 1
USB 2.0 2 2 2 2
I/O Ports (Front)
Power 1 1 1 1
Reset 1 1 1 1
K-Boost 1 1 1 1
USB 3.0 2 2 2 2
USB 3.1 Type-C 1 1 0 0
HDMI 1 1 1 1
Audio (Headphone) 1 1 1 1
Audio (Mic) 1 1 1 1
Storage Support
Max SSD/HDD Supported 12 12 4 4
2.5in SSD 12 12 4 4
3.5in HDD 8 8 2 2
Fans
Fan Controller Yes (Software+Buttons) Yes (Software) No No
Fan Size 140mm (Default), 120mm (Option) 140mm (Default), 120mm (Option) 140mm (Default), 120mm (Option) 140mm (Default), 120mm (Option)
Max Fan Support Top x 3, Right x 3, Left x 2 Top x 3, Right x 3, Left x 2 Top x 3, Right x 3, Left x 2 Top x 3, Right x 3, Left x 2
Included Fans Top x 1, Right x 3, Left x 2 Right x 2, Left x 2 N/A N/A
Temperature Sensor Yes Yes N/A N/A
LED Display Yes Yes N/A N/A
Water Cooling Bracket Yes Yes N/A N/A
Case Size (LxWxH) 686x270x642.45mm 686x270x642.45mm 686x270x642.45mm 686x270x642.45mm
Individual Shipper Size 740x372x800mm 740x372x800mm 740x372x800mm 740x372x800mm
Case Weight (lb/kg) 43.2bl/19.6kg 43.2bl/19.6kg 37.5lb/17.0kg 38.4lb/17.4kg
Gross Weight 51.1lb/23.2kg 51.1lb/23.2kg 43.4lb/19.7kg 44.3lb/22.1kg
