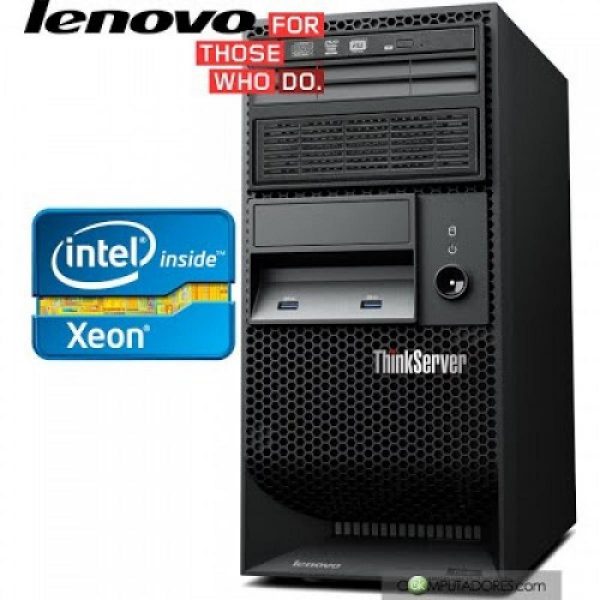

Lenovo Thinkserver TS150 Tower Server


Category:

Wishlist

Tech Specs

Form Factor/Height
Single-socket entry 4U tower ; 25 Liter
Processor (Max)
Cache (Max)
One Intel® Xeon® Processor E3-1200 v6 Series; Core® i3, Pentium® and Celeron® up to 8MB
Memory DIMMS
Up to 64GB TruDDR4 (4x 16GB UDIMMs); 2400MHz ECC UDIMMs
Memory capacity
Up to 64GB (16GB x 4)
Media Bays
Two without a backup drive or one with a backup drive. Support for DVD-ROM or DVD-RW.
Disk Bays
Up to 4 x 3.5″ + 1 x 2.5″ non-hot swap disk bays
Maximum Internal Storage
Up to 40TB 3.5-inch SATA HDD storage
RAID Support
ThinkServer RAID 121i SW RAID 0/1/10/5 std; opt. PCIe ThinkServer RAID 520i 12Gb HW RAID 0/1/10/5
Power Supply (Std/Max)
1/1; 250W 80 PLUS Bronze or 400W 80 PLUS Platinum (non-hot-swap)
Network Interface
Up to 9 ports: 1x onboard 1Gbps Ethernet std; 2 opt. 2/4-port 1Gb Ethernet adapters
Expansion Slots
  • 4 PCIe 3.0 slots: x16/x16; x16/x4; x1/x1; x1/x1 (open end)
  • 1 x PCIe 3.0: HL/FH: x16/x4
  • 1 x PCIe 3.0: HL/FH: x1
Ports
8x USB 3.0 (2 front; 6 rear), 1x RJ-45 Ethernet, 1x serial (COM); 1x VGA (plus 1x DP), 3x audio (mic/lineout/line in), 1 x DisplayPort, 1 x RJ-45, 1 x serial (9-pin), 3 x audio (line-in, line-out, microphone)
Cooling
3 x fans, non-hot swap
Operating Systems Supported
Microsoft Windows Server 2016 and 2012R2,VMware Vsphere (ESXi), Red Hat Enterprise Linux Server, and Client (Microsoft Windows 10)
Dimensions (W x H x D) & Weight
174.75mm (W) x 374.90mm (H) x 430.78mm (D)/6.88 inches (W) x 14.76 inches (H) x 16.96 inches (D); Max. 12,5kg/27.6.lbs

Specifications and availability may differ from that promoted or available from Lenovo resellers from time to time.
