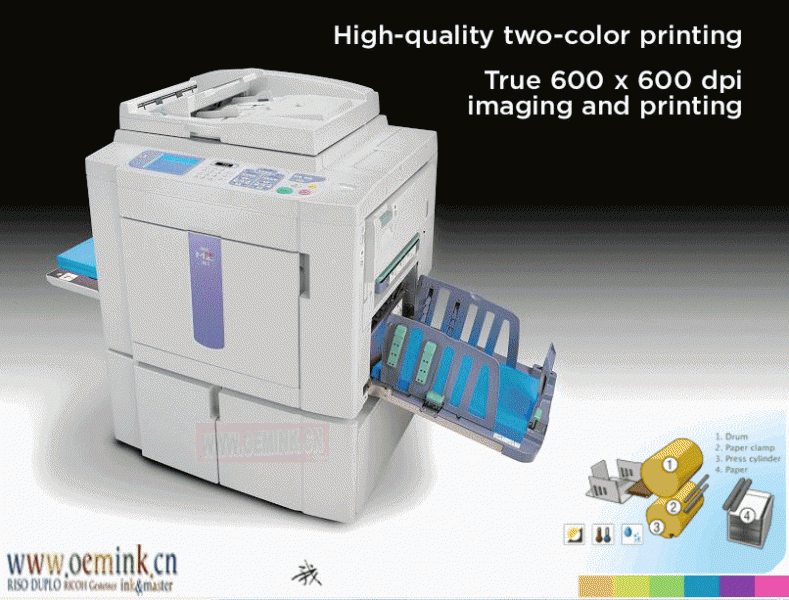

RISO CZ100 Duplicator
High speed 130ppm outputWith a print speed of 130 pages per minute you can make short work of the largest job: a 500 sheets print run takes less than four minutes to finish, so you can print tests for a whole school or fliers for an announcement campaign in an incredibly short time. |
Auto Document Feeder (ADF)
|
Auto Base Control![]() |
1,000 Sheets Capacity
|
Convenient access, easy print drum swapThe large slide-out front panel gives convenient access for both swapping the print drum or in the rare event of a paper jam. As part of RISO’s “clean hands” policy, the print drum pulls out like a drawer allowing anybody to quickly and easily remove and replace it with one of a different color. |
Easy ink and master settingSetting ink and masters is little more than a one-touch operation: simply insert the ink bottle and twist into place, or replace the master roll, close the lever and insert the master sheet into the feed area. |
Disposal boxThe disposal box holds up to thirty used masters, ready for you to throw them away whenever it’s convenient. |
5 color varioation
|
Simple connectivity
|
The RISO i Quality systemTM offers a large number of quality and convenience benefits.
Among them are:
Automatic assurance of optimum print quality
– Prevention of operator error
– Warning of shortages in remaining ink/master volume
– Minimized paper waste
The RISO i Quality System enables easy monitoring of the status of consumables. Simply press the i info button on the Basic Screen for a graphic display of remaining consumables.
Product Description:
CZ180 | CZ100 | |
Master-Making / Printing Methods | High-speed digital master-making / fully automatic stencil printing | |
---|---|---|
Original Type | Sheets ADF: 10 sheets (64g/m²) | |
Original Size | 90mm × 140mm – 310mm × 435mm | |
Original Paper Weight | 50g/m² – 107g/m² | |
Scanning Area (max.) | 297mm × 435mm | |
Print Paper Size | 100mm × 148mm – 297mm × 420mm | 100mm × 148mm – 257mm × 364mm |
Paper Feeding Tray Capacity | 1000 sheets (64g/m²) | |
Print Paper Weight | 50g/m² – 157g/m² | |
Image Processing Mode | Line, Photo, Duo, Pencil | |
Resolution | Scanning resolution: 300dpi x 300dpi
Print image resolution: 300dpi x 300dpi |
|
Master-making Time | Approx. 37 seconds (A4 / Portrait / 100% reproduction ratio) | |
Printing Area
(max.) |
251mm × 357mm | 210mm × 290mm |
Print Reproduction Ratio | Enlargement: 141%, 122%, 116%
Reduction: 71%, 82%, 87%, 94% |
|
Print Speed | 60ppm, 90ppm, 130ppm | |
Print Position Adjustment | Vertical: ±10mm, Horizontal : ±10mm | |
Ink Supply | Fully automatic (800 ml per cartridge) | |
Master Supply / Disposal | Fully automatic (Approx. 200 sheets per roll) | Fully automatic (Approx. 235 sheets per roll) |
Master Disposal Box Capacity | Approx. 30 sheets | |
Features | 2up / 2 in 1, ADF semi-auto, Auto-process, Confidential, Custom mode, Program print, Proof copy, Reservation, Scanning level adjustment, RISO i Quality System | |
Accessories/ Options | PC Interface Card (RISORINC3n), Network Card (RISORINC-NET), Job separator, CZ Drum B4 | PC Interface Card (RISORINC3n), Network Card (RISORINC-NET), Job separator, CZ Drum A4 |
Consumables | RISOMASTER CZ type 13, RISO INK CZ type | RISO MASTER CZ type 10, RISO INK CZ type |
Sound Level | 71dB(A) (130ppm at operating position) | |
Power Source | 100V – 120V <2.0A> / 220V – 240V <1.0A>, 50 / 60Hz | |
Power Consumption | Max: 200W, Stand by: 15W (with full accessories) | |
Dimensions (W×D×H) | When in use: 1280mm × 655mm × 515mm When in storage: 660mm × 655mm × 505mm |
|
Weight | Approx. 62kg |
