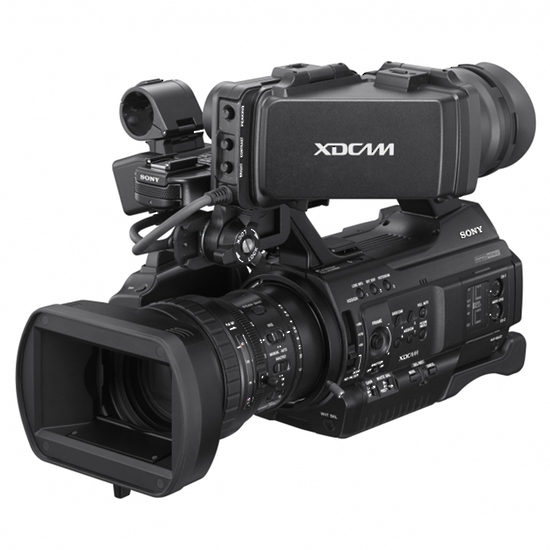

Sony PMW-300K1 (PMW-300,PMW300,PMW300K1) Full HD 1/2inch CMOS Camcorder with 50Mb/s Recording and 14x Zoom Lens

Name: Sony PMW-300K1 XDCAM HD Camcorder
Brand: Tech Nuggets
SKU: -
Availability: InStock
Rating: 5 (1 reviews)

Sony PMW-300K1 (PMW-300,PMW300,PMW300K1) Full HD 1/2inch CMOS Camcorder with 50Mb/s Recording and 14x Zoom Lens. Sony’s new PMW-300 XDCAM camcorder is the first semi-shoulder mount camcorder to combine the benefits of 1/2-type Exmor™ Full HD 3CMOS sensor technology with 50Mbps HD recording at MPEG HD422. The PMW-300 camcorder is ideal for production professionals who require a flexible semi-shoulder camcorder that adapts easily to a range of commercial shooting environments.
The PMW-300’s 1/2-type Exmor™ Full-HD 3CMOS sensors offer high light sensitivity and low image noise to deliver clear, high-resolution images even when shooting in low-light conditions. The camcorder also includes Sony’s advanced signal processing technology to suppress noise effectively and create noticeably clearer images.
The camcorder’s high bit rate ensures excellent capture of fast-moving objects, while its chroma subsampling feature is perfect for a wide range of video encoding areas such as VFX and green screen applications. A planned future upgrade to support Sony&…

Camera Section
Imaging Device	3-chip 1/2″ Exmor Full HD CMOS
Minimum Illumination	0.02 lx (typical) (1920 x 1080/59.94i mode, f/1.9, +18 dB gain, with 64-frame accumulation, Gamma on, 50% video level)
Optical System	f/1.6 prism system
Effective Picture Elements	1920 x 1080 (HxV)
Signal to Noise Ratio	60 dB (Y) (typical)
Sensitivity	2000 lx, 89.9° reflectance: f/11 (typical), 1920 x 1080/59.94i mode
Shutter Speed	1/32 to 1/2000 second
Slow Shutter	2, 3, 4, 5, 6, 7, 8, 16, 32, and 64 frame accumulation
Slow & Quick Motion Function	720p: 1 to 60 fps 1080p: 1 to 30 fps
Gain Selection	-3, 0, 3, 6, 9, 12, and 18 dB, AGC
White Balance	Preset (3,200 K), Memory A, Memory B/ATW
Built-in ND Filter	Clear, 1/4 ND, 1/16 ND, 1/64 ND

Recording
Video Recording Format	MPEG-2 Long GOP HD 422 mode: CBR, 50 Mbps, MPEG-2 422P@HL HQ mode: VBR, 35 Mbps maximum, MPEG-2 MP@HL SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14 SD mode: MPEG IMX, DVCAM
Audio Recording Format	UDF HD 422 50 mode: LPCM 24 bits, 48 kHz, 4 channels HD 420 HQ mode: LPCM 16 bits, 48 kHz, 4 channels SD MPEG IMX mode: LPCM 16/24 bits, 48 kHz, 4 channels SD DVCAM mode: LPCM 16 bits, 48 kHz, 4 channelsFAT HD mode: LPCM 16 bits, 48 kHz, 4 channels SD DVCAM mode: LPCM 16 bits, 48 kHz, 2 channels
Recording Frame Rate	UDF HD 422 50 mode: 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98pHD 420 HQ mode: 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p (requires version up) 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p, 1280 x 720/ 59.94p, 50p, 23.98p (2-3 pull down)SD mode: 720 x 480/ 59.94i, 29.97PsF 720 x 576/ 50i, 25PsFFAT HD 420 HQ mode: 1920 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1440 x 1080/ 59.94i, 50i, 29.97p, 25p, 23.98p 1280 x 720/ 59.94p, 50p, 29.97p, 25p, 23.98pHD SP 1440 mode: 1440 x 1080/ 59.94i, 50i, 23.98p (2-3 pull down)SD DVCAM mode: 720 x 480/ 59.94i, 29.97PsF 720 x 576/ 50i, 25PsF
Recording Media	SxS Express 34 Cards
Recording/Playback Time	UDF HD 422 50 / SD MPEG IMX mode: Approx. 120 min with 64 GB memory card Approx. 60 min with 32 GB memory card Approx. 30 min with 16 GB memory cardHD 420 HQ mode: Approx. 180 min with 64 GB memory card Approx. 90 min with 32 GB memory card Approx. 45 min with 16 GB memory cardSD DVCAM mode: Approx. 220 min with 64 GB memory card Approx. 110 min with 32 GB memory card Approx. 55 min with 16 GB memory cardFAT HD HQ mode: Approx. 200 min with 64 GB memory card Approx. 100 min with 32 GB memory card Approx. 50 min with 16 GB memory cardHD SP mode: Approx. 280 min with 64 GB memory card Approx. 140 min with 32 GB memory card Approx. 70 min with 16 GB memory cardSD DVCAM mode: Approx. 260 min with 64 GB memory card Approx. 130 min with 32 GB memory card Approx. 65 min with 16 GB memory card

Inputs/Outputs
Genlock Input	1 x BNC (switchable to video out), 1.0 Vp-p, 75 ohm
Timecode Input	1 x BNC (switchable to TC out) (SMPTE 12M-2-2008 standard, 0.5 V to 1.8 Vp-p, 10 kilo-ohm)
Audio Input	2 x XLR-type 3-pin (female), line/mic/mic +48 V selectable
HDMI Output	1 x A-type
SDI Output	2 x BNC, HD-SDI/SD-SDI selectable
Composite Video Output	BNC type
Video Output	1 x BNC, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75 ohm
TC Output	1 x BNC (switchable to TC in) (SMPTE 12M-2-2008 standard, 0.5 V to 1.8 Vp-p, 10 kilo-ohm)
Headphone Output	1 x Stereo mini-jack
Speaker Output	Monaural
Lens Remote Control Connector	8-pin, round
Remote	8-pin
Built-In Microphone	Omni-directional stereo electret condenser microphone
DV I/O (i.LINK)	1 x IEEE-1394, 4-pin, HDV (HDV 1080i) / DV input/output, S400
USB Port	1 x USB 2.0, mini-B type 1 x USB host, Type A

Lens
Focal Length	5.8 to 81.2 mm 35mm equivalent: 31.4 to 439 mm
Zoom Ratio	Optical 14x
Aperture	f/1.9 to f/16 and close
Lens Mount	1/2-type EX mount
Filter Diameter	77 mm, pitch 0.75 mm

Monitoring
Viewfinder	3.5″ color LCD monitor 960 x 540 (HxV)

General Specifications
Media Type	2 x ExpressCard/34
Battery Operating Time	Approx. 3.6 hrs with BP-U90 battery (while recording, with viewfinder, I/O Select Off)
Power Requirements	12 VDC
Power Consumption	Approx. 20 W (while recording, with viewfinder, IO Select off)
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions (WxHxD)	10.8 x 9.4 x 15.1″ (27.5 x 23.9 x 38.4 cm)
Weight	4.88 lb (2.21 kg)
