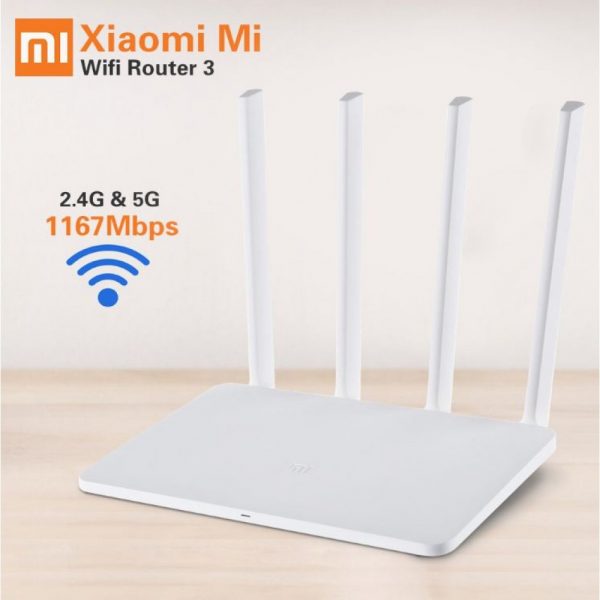

Xiaomi Mi Router 3 English Version Dual Band 2.4G/5GHz 128MB Wifi Wireless Router
Original Xiaomi Mi Router 3 Dual Band 2.4G/5GHz 128MB Wifi Wireless Router
Download the App
Manage your router anytime and anywhere.
Please download the App from Google Play/App Store or by scanning the QR code below;
PC/Mac client can be downloaded from miwifi .com.
Manage your router anytime and anywhere.
Please download the App from Google Play/App Store or by scanning the QR code below;
PC/Mac client can be downloaded from miwifi .com.
Specification |
|
| Model | MiR3 |
| Processor | MT7620A |
| ROM | 128MB SLC Nand Flash |
| RAM | 128MB DDR2 |
| Language |
English |
| Wi-Fi protocols | 802.11n, 2.4GHz 2X2 (speed up to 300Mbps); 5GHz 2X2 (speed up to 867Mbps) |
| Antennas | 4 omnidirectional antennas (2.4G x 2, maximum 5dBi; 5G x2, maximum 6 dBi) |
| Heat dispersion mechanism | Fanless architecture |
| Interface | 1X USB 2.0 (DC output: 5V/1A) 2x LAN port, 10/100Mbps (Auto MDI/MDIX) 1x RJ45 WAN port, 10/100Mbps (Auto MDI/MDIX) Red/Blue/Yellow LED indicator 1x Reset button 1x Power por |
| Wi-Fi channels | Operating frequency: 2.4GHz, 5GHz Radio channel 2.4GHz: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz: 149,153,157,161,165 5GHz DFS: 36,40,44,48,52,56,60,64Modulation type: 11bDSSS：DBPSK(1Mbps),DQPSK(2Mbps), CCK(5.5/11Mbps) 11a/g：OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps) 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Rate set:MCS0~MCS15 11ac：MIMO-OFDM:BPSK, QPSK,16QAM,64QAM,256QAM. Rate set:MCS0~MCS9(Support 2 Spatial Streams)Receiver sensitivity: 11Mbps:≤-90dBm,54 Mbps:≤-72dBm, HT20 MCS7:≤-69dBm, HT40 MCS7:≤-66dBm, VHT20 MCS8:≤-65dBm, VHT40 MCS9:≤-60dBm, VHT80 MCS9:≤-58 dBm |
| Software | Operating system: MiWiFi OS(Based on OpenWRT) Advance access: The administrator can grant privilege to users to install toolchain and SDK. Wireless encryption: WPA-PSK/WPA2-PSK encryption, wireless access control (black and white list), SSID hiding, intrusion detection, DoS protection, access control manager, SSID isolation Compatibility: Web, Android, iOS |
| Wi-Fi protocols | IEEE 802.11a/b/g/n/ac，IEEE 802.3/3u |
| Certification standard | GB9254-2008 YD/T993-1998 GB4943.1-2011 |
| Environmental requirements | Operating ambient temperature: 0-40℃ Relative humidity: 10%-90%RH（noncondensing） Nonoperating temperature: -40-70℃ Storing humidity: 5%-90%RH（noncondensing） Total power consumption: 12W |
| Size |  |
| Package | 1x Mi Router 3 1x English User menu 1x Power input (5V/ 1A) |
