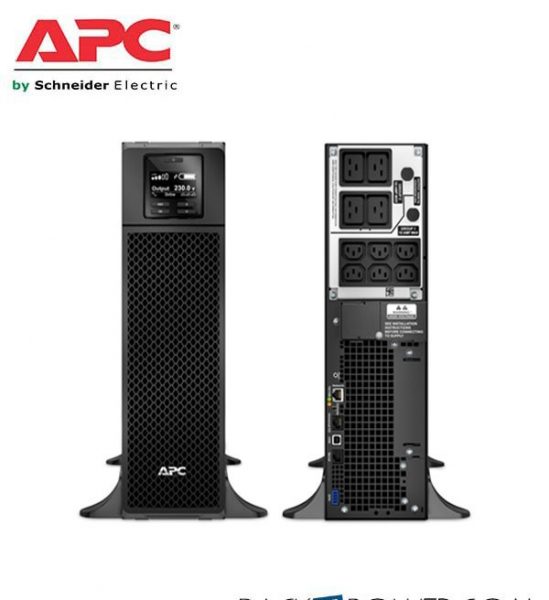

APC Smart-UPS SRT 5000VA / 4500 Watt UPS 230V
Characteristics
Model Name |
APC Smart-UPS SRT 5000VA 230V
|
|
Includes |
CD with software , Comms cable , Documentation CD , Installation guide , Removable support feet , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
|
|
Standard Lead Time |
Usually in Stock
|
|
Output Power Capacity |
4500 Watts / 5000 VA
|
|
Max Configurable Power (Watts) |
4500 Watts / 5000 VA
|
|
Nominal Output Voltage |
230V
|
|
Output Voltage Distortion |
Less than 2%
|
|
Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz
|
|
Other Output Voltages |
220, 240V
|
|
Crest Factor |
3 : 1
|
|
Double Conversion Online
|
||
Waveform Type |
Sine wave
|
|
Output Connections |
(2) IEC Jumpers (Battery Backup) , (4) IEC 320 C19 (Battery Backup) , (6) IEC 320 C13 (Battery Backup)
|
|
Bypass |
Internal Bypass (Automatic and Manual)
|
Nominal Input Voltage |
230V
|
|
Input Frequency |
40 – 70 Hz (auto sensing)
|
|
Input Connections |
Hard Wire 3 wire (1PH+N+G)
|
|
Input voltage range for main operations |
160 – 275 V
|
|
Input voltage adjustable range for mains operation |
100 – 275 (half load)V
|
|
Other Input Voltages |
220 , 240
|
|
Maximum Input Current |
0 A
|
|
Input Breaker Capacity |
0 A
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
|
Included Battery Modules |
2
|
|
Battery Slots Empty |
0
|
|
Typical recharge time |
1.5 hour(s)
|
|
Replacement Battery |
APCRBC140
|
|
RBC Quantity |
1
|
Interface Port(s) |
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
|
|
Available SmartSlot™ Interface Quantity |
1
|
|
Control panel |
Multi-function LCD status and control console
|
|
Audible Alarm |
Audible and visible alarms prioritized by severity
|
|
Emergency Power Off (EPO) |
Yes
|
Surge energy rating |
480 joules
|
Maximum Height |
432.0 mm
|
|
Maximum Width |
130.0 mm
|
|
Maximum Depth |
720.0 mm
|
|
Rack Height |
0 U
|
|
Net Weight |
54.43 kg
|
|
Shipping Weight |
63.6 kg
|
|
Shipping Height |
330.0 mm
|
|
Shipping Width |
610.0 mm
|
|
Shipping Depth |
960.0 mm
|
|
Master Carton Units |
0.0
|
|
Master Carton Weight |
0.0 lbs
|
|
Color |
Black
|
|
Units per Pallet |
6.0
|
Operating Environment |
0 – 40 °C
|
|
Operating Relative Humidity |
0 – 95% non-condensing %
|
|
Operating Elevation |
0-3000 meters
|
|
Storage Temperature |
-15 – 45 °C
|
|
Storage Relative Humidity |
0 – 95% non-condensing %
|
|
Storage Elevation |
0-15000 meters
|
|
Audible noise at 1 meter from surface of unit |
55.000 dB
|
|
Online Thermal Dissipation |
931.000 BTU/hr
|
|
Protection Class |
IP 20
|
Approvals |
CE , CE Mark , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , ENERGY STAR V1.0 (EU) , IRAM , RCM , VDE
|
|
Standard warranty |
3 years repair or replace (excluding battery) and 2 years for battery
|
RoHS |
Compliant
|
|
REACH |
REACH: Contains No SVHCs
|
