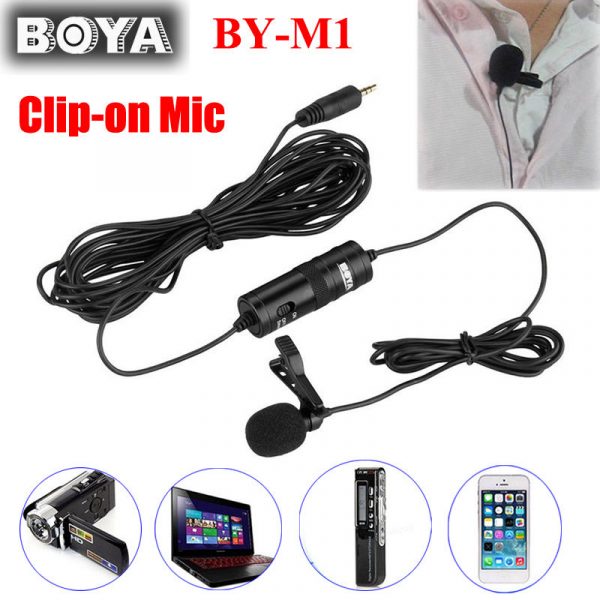

BOYA BY-M1 Clip-On Microphone for DSLR Camera/ Smartphone/ Camcorder/ Audio Recorders
BOYA BY-M1 is an omnidirectional lavalier microphone, perfect for video use, designed for Smartphones, DSLR, Camcorders, Audio recorders, PC etc. The lavalier microphone features an Omni pickup pattern, for full, 360-degree coverage. An integrated 6-meter (20”) cable with 3.5mm 4-pole gold plug, can connect directly to Smartphones, most of the cameras.
Using the microphone:
For Smartphone
Switch off the microphone. Slide the ON/OFF up to OFF/Smartphone.
The power is shut down.
For DSLR, Camcorders, Audio recorders, PC ect
Switch on the microphone. Slide the ON/OFF up to ON.
Switch off the microphone. Slide the ON/OFF up to OFF/Smartphone.
The power is shut down.
For DSLR, Camcorders, Audio recorders, PC ect
Switch on the microphone. Slide the ON/OFF up to ON.
Specification:
| Transducer | Electret Condenser |
| Polar pattern | Omni-directional |
| Frequency Range | 65Hz-18KHz |
| Signal/Noise | 74dB SPL |
| Sensitivity | -30dB+/-3dB/0dB=1V/Pa,1kHz |
| Output Impedance | 1000 Ohm or less |
| Connector | 3.5mm (1/8 inch) 4-pole gold plug |
| Accessories | Lapel clip, LR44 battery, foam windscreen, 1/4 inch adapter |
| Battery type | LR44 |
| Dimension | Microphone: 18mm H ×8.3mm W×8.3mm D |
| Weight Microphone | 2.5g |
| Weight Power Module | 18g |
Package Included:
1 x BOYA BY-M1 Lavalier Audio Microphone
