DJI™ Cendence Remote Controller



DJI™ Cendence Remote Controller

DJI‘s Cendence Remote Controller is a professional transmitter for controlling the DJI Inspire 2 or Matrice 200 Series aircraft. Five analog control channels and ten customizable buttons provide a flexible platform for precise flight and video controls. Right out of the box, the Cendence controller is compatible with CrystalSky monitors, thanks to the included monitor-mounting bracket. Furthermore, the controller is designed to be modular for interchangeable antennas and control stick accessories. If you prefer to use the controller with your phone or tablet, a separately available mounting bracket can be used.

Customizable Buttons

Customizable buttons can quickly enable or disable frequently used functions like focus peaking, color waveform, obstacle avoidance, and home point resetting, or close warnings and tips midflight, all without using an app. You can also customize several shortcut buttons for particular groups of settings, or save frequently used settings.

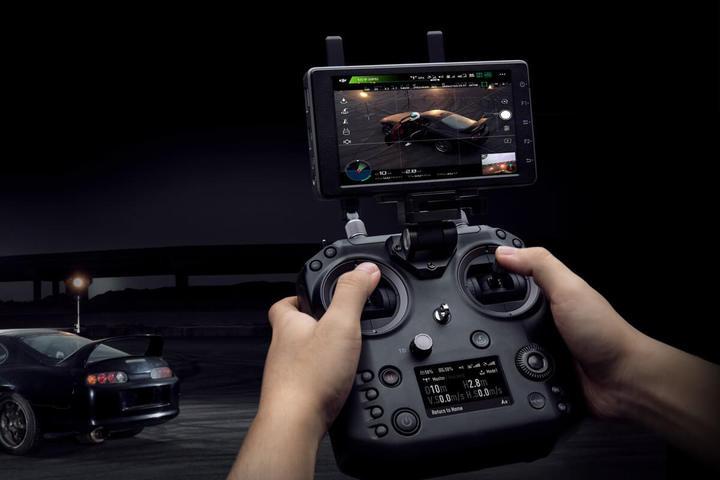

Modular Design with CrystalSky Compatibility

The Cendence remote controller’s antennas, PCB, mounting bracket, and battery are all detachable, making its hardware easily upgradable and allowing you to customize the controller for compatibility with future DJI aircraft. A CrystalSky monitor can be mounted to the Cendence remote controller via the included Cendence Monitor Mounting Bracket.

Dual Operator Control

When precision camera control is required, the Cendence remote controller can connect as either a master or slave controller with the Inspire 2’s remote controller or another Cendence remote controller.

Battery System

Cendence uses a detachable battery that operates for up to four hours. If you run out of power, just swap in a charged battery or charge Cendence via the power port. Cendence uses the same batteries as CrystalSky monitors, unifying the two systems.


Inspire 2
Matrice 200 Series

Quick Features

Provides up to five analog control channels and over ten customizable buttons, improving overall control efficiency.

Cendence’s design offers antenna interchangeability. A high-gain antenna, or DJI’s Tracktenna, can augment the power of DJI Lightbridge technology, significantly increasing overall anti-interference and image quality.

HDMI, SDI, USB, and CAN ports provide robust expansion capabilities.

Cendence comes with the fully integrated Cendence Monitor Mounting Bracket for CrystalSky monitors.

DJI Cendence Specs

Operating Frequency 2.4-2.483 GHz, 5.725-5.825 GHz
Transmission Distance FCC
2.4 GHz: 4.3 mi / 7 km
5.8 GHz: 4.3 mi / 7 km

2.4 GHz: 2.2 mi / 3.5 km
5.8 GHz: 1.2 mi / 2 km

2.4 GHz: 2.5 mi / 4 km
5.8 GHz: 3.1 mi / 5 km

Note: All figures are maximum distance, line-of-sight

EIRP FCC: 26 dBm @ 2.4 GHz, 28 dBm @ 5.8 GHz
CE: 17 dBm @ 2.4 GHz, 14 dBm @ 5.8 GHz
SRRC: 20 dBm @ 2.4/5.8 GHz
I/O 1 x BNC SDI output
1 x HDMI Type-A output
1 x CAN port (for Tracktenna)
1 x USB Type-A
Environmental Operating Temperature: -4 to 104°F / -20 to 40°C
Storage Temperature (less than 3 months): -4 to 113°F / -20 to 45°C
Storage Temperature (more than 3 months): 72 to 82°F / 22 to 28°C
Charging Temperature: 32 to 104°F / 0 to 40°C
Weight 2.2 lb / 1 kg
Packaging Info
Package Weight 4.8 lb
Box Dimensions (LxWxH) 9.4 x 7.7 x 6.8″
