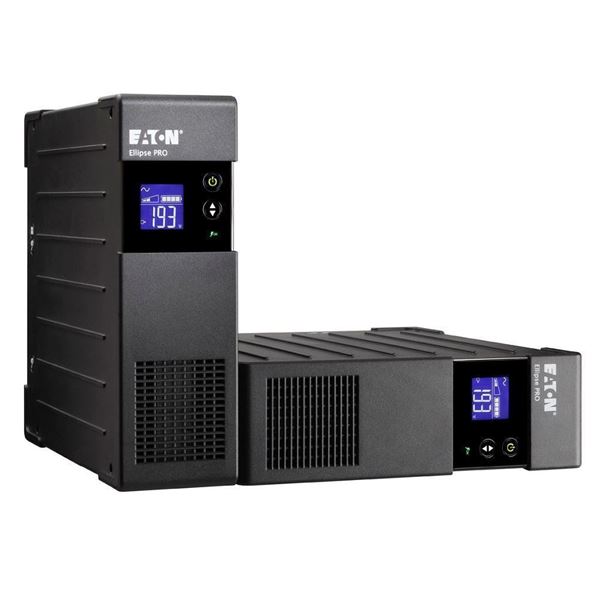

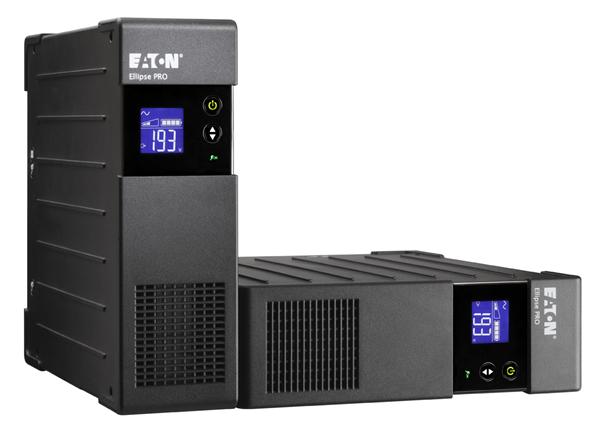

Eaton Ellipse PRO 1200 1200VA/750Watts DIN UPS
Energy-saving power protection for workstations
• The LCD screen on the Eaton Ellipse PRO UPS provides clear information on its status and measurements. It also allows easy configuration of UPS settings.
• The EcoControl function, which automatically disables peripherals when the master device is turned off, can cut energy consumption by as much as 20%.
• Automatic Voltage Regulation (AVR) instantly corrects voltage fluctuations, meaning you can continue working through brownouts and overvoltages without using the batteries.
• The Ellipse PRO includes a high performance surge-protection device that complies with IEC 61643-1.This device also protects data connections such as Ethernet, internet and telephone lines.
Easy integration and installation
• The Ellipse PRO comes with either four (650/850 models) or eight (1200/1600 models) Schuko (DIN) or French (FR) sockets for easy connection to most common computer configurations with peripherals. IEC models are also available.
• The Ellipse PRO’s extra-flat design makes it easy to install in any office environment: installation options include vertical box format, below the desk, horizontally under a monitor, 19” rack-mounted (optional 2U kit) and wall-mounted (optional kit).
• The Ellipse PRO is equipped with a USB port and comes complete with a USB cable and Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
Complete peace of mind
• Three-year warranty including batteries.
• Unlimited warranty for connected computer equipment (EU countries and Norway only).
• Battery tests itself automatically at regular intervals, ensuring early detection when it’s time for replacement.
• Easy-to-replace battery helps to extend UPS service life
| General | |||
| Topology | Line-interactive (AVR with booster + fader) | ||
| Configuration | Rack/Tower | ||
| Part Number | ELP1200IEC | ||
| Color | Black | ||
| Rating (VA/Watts) | 1200/750 | ||
| EcoControl | Yes up to 20% energy saving (automatic deactivation of idle peripherals) | ||
| Dimensions (H x W x D, mm) | 275 x 82 x 390 | ||
| Weight (kg) | 9.9 | ||
| Warranty | 3 years on electronics, 2 years on batteries | ||
| Electrical Input | |||
| Connection |
(1) IEC-320-C14
|
||
| Input Voltage Range | 165 V – 285 V (adjustable to 150 V – 285 V) | ||
| Nominal Voltage | 230 V | ||
| Operating Frequency | 50-60 Hz autoselect | ||
| Electrical Output | |||
| Voltages | 230 V (adjustable to 220 V – 230 V – 240 V) | ||
| Output Receptacles |
(4) IEC-320-C13
(4) IEC-320-C13 surge only
|
||
| Battery | |||
|
Runtime
(Minutes) 100
200
300
400
500
600
700
0
20
40
60
80
100
120
140
160
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Actual runtime may vary from +/- 15% around these typical values
Hover over graph for detailed runtime values
|
|||
| Battery Management | Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries | ||
| Communications | |||
| User Interface | LCD (UPS status and measurements, configuration of UPS settings) | ||
| Communication Ports | USB port ( cable supplied) | ||
| Power Management Software | Eaton UPS Companion CD ROM (enables safe system shutdown, energy usage metering and configuration of UPS settings) | ||
| Environmental & Standards | |||
| Surge Protection | Surge protection device compliant with IEC 61643-7 | ||
| Performance – Safety – EMC | IEC/EN 62040-1, IEC/EN 62040 -2, CB report, CE mark | ||
| Data Line Protection | Tel/fax/modem/internet and Ethernet | ||
In the interests of continuous product improvement all specifications are subject to change without notice.
