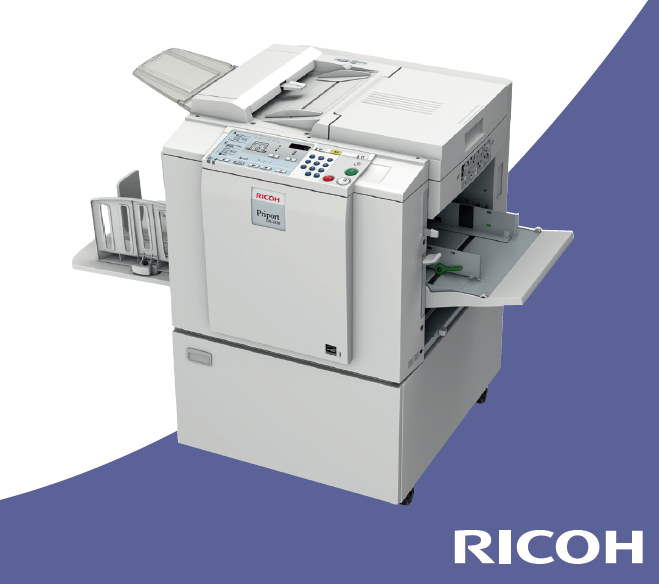

Ricoh Priport™ DX2430 Digital Duplicator



Ricoh Priport™ DX2430 Digital Duplicator




Swift service

  • Attain excellent productivity levels at 90 prints per minute.
  • Job fl ow from master-making to printing takes only one minute.
  • Turn your duplicator into a high-speed printer with the optional PC controller.
Easy & high-quality colour

Spot colour printing becomes uncomplicated and inexpensive with the DX 2430. The colour drum is easy to change. Ten standard colour inks and unlimited custom tints are available. The device offers a fi ne 300 dpi print quality. You obtain the best images printing directly from your PC with the optional PC controller.

Durable & reliable


  • New ink pump: reduced maintenance costs and increased reliability.
  • Reliable paper feed: separation mechanism, adjustable feed pressure.

Work with thin paper

​Do you use light paper types? With the DX 2430 your productivity is never compromised. This system automatically detects a misfeed and instructs the feed system to retry. The DX 2430 handles paper as light as 35 g/m² without any problems.

Think green

Lower your energy bills and reduce your carbon footprint at the same time. A duplicator’s printing process requires no heat. For that reason, the DX 2430 uses signifi cantly less electricity than conventional printers. Digital duplication goes easy on the environment – and on your pocket. Lack of emissions ensures a healthy and sustainable work environment.

Edit directly


  • Enlarge, reduce or combine originals without creating a second-generation original on PC.
  • Get fine print results with mixed documents by using Photo/letter mode.




Type Digital, desktop

Printing process Fully-automatic one-drum stencil system

Originals Sheet (one original sheet only)

Original size Minimum 90 x 140 mm

Maximum 275 x 395 mm

Print paper size Minimum 90 x 140 mm

Maximum 297 x 395 mm

Print paper weight 35.0 – 127.9 g/m²

Print area DX 2330 210 x 355 mm

DX 2430 250 x 355 mm

Print speed 60 – 90 sheets per minute (2 steps)

First print time Less than 45 seconds

Resolution 300 x 300 dpi

Image modes Letter mode, Photo mode, Photo/letter mode

Image position Vertical ± 10 mm

Horizontal ± 10 mm

Reproduction ratios Pre-set enlargement 115, 122, 141%

Pre-set reduction 71, 82, 87, 93%

Zoom No

Colour printing By replacing colour drum

Paper feed/delivery table capacity 500 sheets (80 g/m²)

Power source 220 – 240 V, 50 – 60 Hz

Power consumption Maximum Master making: less than 175 W

Printing Less than 175 W (at 90 sheets per minute)

Standby 35 W

Dimensions (W x D x H) 1,232 x 672 x 519 mm

Weight 55 kg


Auto background correction, auto cycle, photo/letter mode, tint mode, SP mode (for technical service use only), Combine two originals, spot colour printing with optional colour drum units.


  • Network controller printer unit type VC-20
  • Interface board type 20
  • Colour drum type 20 (A4/B4)
  • Cabinet


  • Priport™ master type TT3 (100 masters per roll, A4/B4)
  • Priport™ black ink type TT3 (500 ml)
  • Digital Duplicator colour ink type II (600 ml): red, blue, yellow, green, purple, navy,
    brown, maroon, orange, teal
  • CM ink (custom-made colours, 500 ml)
  • Tape dispenser tape

For availability of models, optional apparatus and software, please consult your local Gestetner supplier.

All brand and/or product names are trademarks of their respective owners. Specifications and external appearance are subject to change without notice.
