ViewSonic® PA503X 3600 Lumens XGA Business Projector

Name: ViewSonic® PA503X 3600 Lumens XGA Business Projector
Brand: Tech Nuggets
SKU: -
Availability: InStock
Rating: 5 (1 reviews)

Price-performance Projector, 3,600 Lumens, 1024 x 768 Resolution

The ViewSonic PA503X price-performance projector features 3,600 lumens, native XGA 1024 x 768 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503X also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours*. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503X is ideal for use in education and small business environments.

*Energy consumption and lamp life may vary based on actual usage and other factors.

Industry-leading Warranty

ViewSonic offers one of the industry’s best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service.*

*One year Express Exchange Service requires product registration.

Reduced Input Latency

This projector delivers smooth images without delay. It’s ultra-low 16ms input latency provides faster frame-by-frame action.

Features:

SuperColor: Amazing Color Accuracy
3,600 Lumen Brightness
Energy Efficient SuperEco
Reduced Input Latency

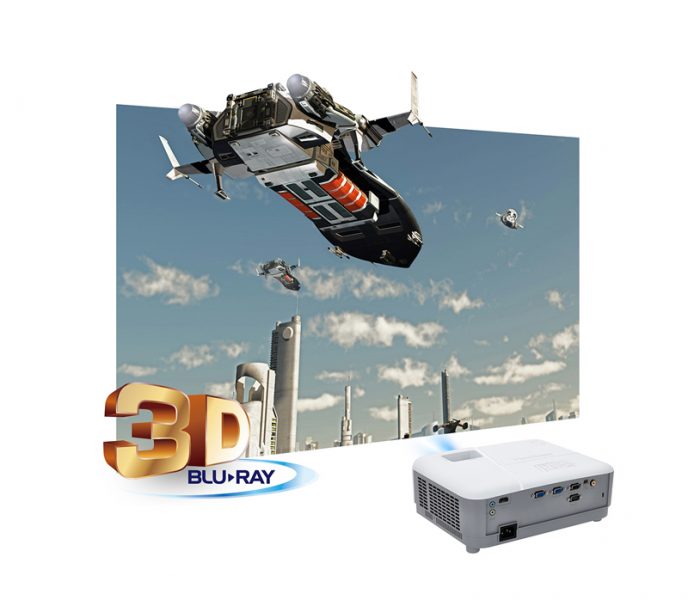

3D Blu-ray Ready HDMI Input
Quick Power Off
15,000 Hours Lamp Life (Eco Mode)


SuperColor: Amazing Color Accuracy ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.	3,600 Lumen Brightness Packed with 3,600 lumens and a high contrast ratio, this projector produces bright images in nearly any environment.	Energy-efficient SuperEco SuperEco mode allows users to dim projection brightness by up to 70%, thereby reducing the lamp’s power consumption—a great energy-saving design that lowers the total cost of ownership (TCO).

Exterior & Rear I/O Connectors

ViewSonic PA503X Specs

Image Display
Display System	DLP
Native Chip Resolution	1024 x 768 (XGA)
Supported Resolutions	WUXGA – 1920 x 1200
Max Brightness	3600 Lumens
Aspect Ratio	Native: 4:3
Dynamic Contrast Ratio	22,000:1
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Horizontal: 15 – 102 kHz Vertical: 23 – 120 Hz

Lens
Focus	Manual
Optical Zoom	Manual: 1.1x
Throw Distance	3.9 – 43′ / 1.189 – 13.106 m
Throw Ratio	1.96 – 2.15:1
Projection Size	30 – 300″ / 76.20 – 762.00 cm

Features
Keystone Correction	Vertical: ± 40°
Built-In Speaker	Yes
Speaker Power	2W

Input/Output Connectors
Inputs/Outputs	1 x HDMI Audio/Video (Input) 2 x VGA (DE-15) Video (Input) 1 x Composite (RCA) Video (Input) 1 x 1/8″ (3.5 mm) Mini Audio (Input) 1 x VGA (DE-15) Video (Output) 1 x 1/8″ (3.5 mm) Mini Audio (Output) 1 x Mini-USB Type-B Female (Input) 1 x RS-232C (Unspecified Connector) Control (Input)

General
Lamp Power	190 W
Expected Lamp Life	Medium Brightness: 4500 Hours Low Brightness: 15,000 Hours
Security	Cable Lock Slot
AC Input Power	120 to 240 VAC, 50 / 60 Hz
Power Consumption	Medium Brightness: 260 W Standby Mode (Lamp Off): <0.5 W
Temperature	Operating 32 to 104°F (0 to 40°C)
Dimensions (W x H x D)	11.6 x 4.3 x 8.6″ / 294.0 x 110.0 x 218.0 mm
Weight	4.89 lb / 2.22 kg
