ZIDOO X9S TV Box 4K HD Quad-Core Dual Band WiFi 2G+16G IPTV Media


Category:

Wishlist

ZIDOO X9S TV Box 4K HD Quad-Core Dual Band WiFi 2G+16G IPTV Media

ZIDOO X9S TV Box 4K HD Quad-Core Dual Band WiFi 2G+16G IPTV Media

Cortex-A53 + H.265 4K x 2K + Android 6.0 + OpenWRT- Gray EU Plug

64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug

64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug

64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
64bit Quad-core Cortex-A53 CPU Android 6.0 System 4K x 2K- US Plug
Cortex-A53 + H.265 4K x 2K + Android 6.0 + OpenWRT- Gray EU Plug
Cortex-A53 + H.265 4K x 2K + Android 6.0 + OpenWRT- Gray EU Plug
Cortex-A53 + H.265 4K x 2K + Android 6.0 + OpenWRT- Gray EU Plug
Cortex-A53 + H.265 4K x 2K + Android 6.0 + OpenWRT- Gray EU Plug

Specification

Model X9S
Material Space Aluminium
Shell Aviation Aluminum alloy case in smoke-colored
OS Android 6.0 + OpenWRT(NAS) dual system run simultaneously
CPU Realtek RTD1295 ARM Cortex-A53 Quad-Core with floating-point unit and NEON SIMD engine embedded
GPU ARM T820 MP3(3-core)
Memory 2GB DDR3
Internal Storage 16GB eMMC
Wifi Connectivity IEEE 802.11a/b/g/n, 802.11AC,4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band) RTK8821 dual-band WIFI
Ethernet 1*RJ-45 Ethernet Jack (10/100/1000Mbps)
Bluetooth BT4.0
HDMI Out HDMI with HDCP 2.2 output, Support [email protected] Support HD Audio(7.1CH), support 23.976 and 29.94
HDMI In HDMI with HDCP 2.2 input, support PIP, HDMI IN stream recode and stream output via UDP etc…
Video decode HDR, 10-bit HEVC/H.265 up to 4K @ 60fps, VP9 up to 4K @ 60 fps, H.264 up to 4K @ 24 fps, automatic frame rate switching
Audio decode Support HD audio(7.1ch) decode and passthrough Redesigned Native player,Blu-ray better compatibility,Powerful subtitles ,Support MVC ISO,MVC MKV.Built in ZDMC
USB 1 * USB3.0
2 * USB2.0
*External power needed if USB connects to over 1TB mobile HDD
Power DC 12V/3A
other interface 1 * TF card reader SD card interface . Support 1GB/2GB/4GB/8GB/16GB/32GB
1 * IR receiver
1 * AV OUT Composite video and audio port (Cvbs output)
1 * OPTICAL (2CH, 5.1CH)
1 * SATA3.0 (To connect Serial ATA )
1 * VFD display (with LED light)
What’s in the box: 1 * TV box
1 * Remote control
1 * HDMI cable
1 * Power adapter
1 * User manual
1 * SATA cable

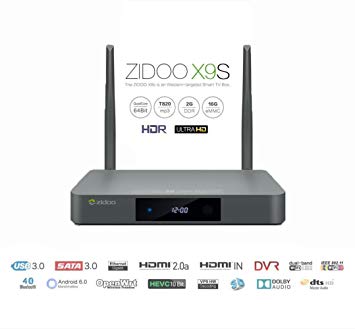

Appearance

X9S spec
X9S spec
X9S spec
X9S spec

Remote Control

X9S spec

Package

X9S spec size
