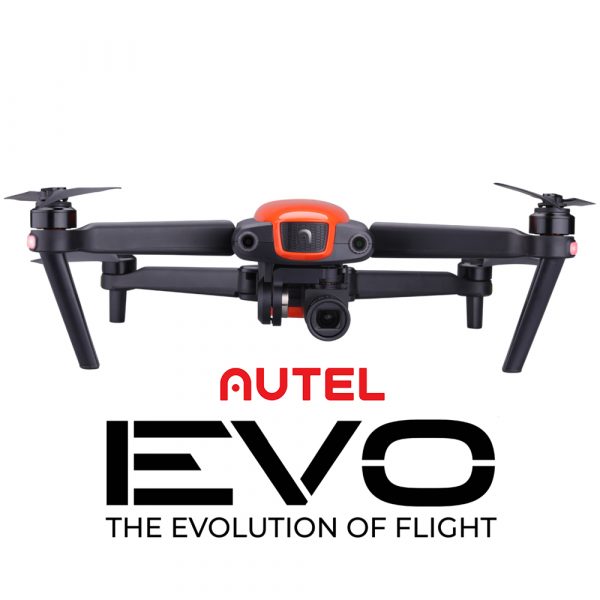

Autel Robotics EVO Quadcopter
Technical Specifications
| Aircraft | |
| Hover Precision | GPS+ Ultrasonic+IMU: Horizontal: ±1.5m, Vertical: ±0.2m; Vision+IMU: Horizontal: ±0.1m, Vertical: ±0.1m |
| Max. Yaw Rate | 200 dps |
| Max. Inclination Angle | 35° |
| Max. Ascent/Descent Speed | Ascent: 5m/s Descent: 3m/s |
| Max. Horizontal Speed | 20 m/s (44.7mph) |
| Diagonal Wheelbase | 338 mm |
| Propeller Size | 8.3″ x 2.9″ |
| Video Link Frequency | 2.4GHz~2.4835GHz |
| Receiver Frequency | 2.4GHz~2.4835GHz |
| Flight Modes | GPS · ATTI · SPORT |
| Operating Environment Temperature | 32° F ~ 104° F (0° C ~ 40° C) |
| Storage Temperature | -10°C~40°C (14°F~104°F) |
| Weight (Battery & Propellers included) | 863g (1.90lbs) |
| Camera | |
| Operating Environment Temp. | 0°C~40°C (32°F~104°F) |
| Still Photography Modes | Single shot Burst shooting Auto Exposure Bracketing (AEB) Time-lapse |
| Video Recording Modes | Normal · Picture In Video (PIV) |
| Max Frame Rates | 4K60, 2.7K60, 1080p120, 720p240 |
| Max Field of View | 94° |
| Supported SD Card Types | Micro-SD, 4 GB – 128 GB, Class 10 or UHS-3 |
| File Formats | FAT32/exFAT, Photo: JPG/DNG/JPG+DNG, Video: MOV/MP4 H.264 or H.265 |
| Aircraft Battery | |
| Battery Type | Rechargeable Lithium-Polymer Battery |
| Capacity | 4300 mAh |
| Battery Voltage Charging | 11.4 V |
| Charging Environment Temperature | 10°C~45°C (50°F~113°F) |
| Discharging Environment Temperature | -20°C~60°C (-4°F~140°F) |
| Storage Temperature & Humidity | Temp: -10°C~40°C (14°F~104°F) Humidity: 65±20%RH |
| Flight Time | Up to 30 minutes |
| Remote Controller | |
| OLED Screen Brightness | 330 nits |
| Max Operating Time | 3 hours |
| RF Receiver Operating Frequency | 2.4GHz~2.4835GHz |
| Video Link Frequency | 2.4GHz~2.4835GHz |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | 1 year: -20°C~25°C(-4°F~77°F) 3 months: -20°C~45°C(-4°F~113°F) |
| Max Control and Video Transmission Distance | 7km (4.3miles) |
| Transmission Power (EIRP) | FCC: <=26 dBm CE: <=20 dBm |
| Operating Current/Voltage | 2A @ 3.6V |
| Battery | 6700mAH |
| Power Consumption | 7.2W |
| Weight (battery included) | 370g (0.81lbs) |
