Haro Flightline One 27.5

HARO FLIGHTLINE ONE 27.5

Category:
Wishlist

FLIGHTLINE ONE 27.5

Flightline One 27.5

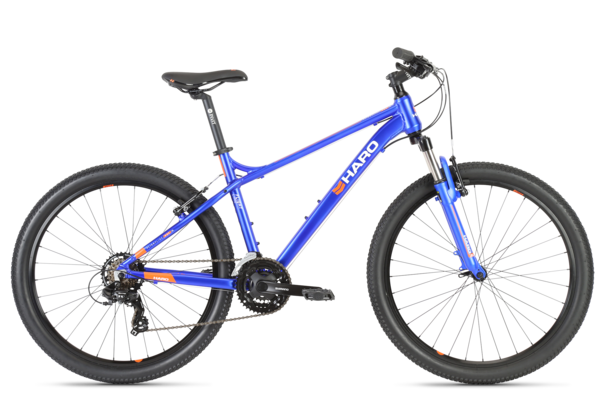

Flightline One 27.5 features an all new 6000 series alloy frame with an internal head tube mounted to a Haro suspension fork with 80mm of travel to smooth out all the bumps. FL One 27.5 features 27.5″ wheels which are slightly taller and faster rolling, made from alloy double wall rims, Pivot alloy hubs, and 2.2″ wide tires with multi surface tread patterns ideally suited to on road riding as well as off.

SPECIFICATIONS

FRAMESET
Frame 2018 Haro Flightline FL4G 6000 series alloy w/ new Down Tube & Internal Head Tube
Fork HL CH-389, 27.5″ w/ 80mm Travel
Colors Black / Red, Blue / Orange
Weight 29.70lbs
DRIVETRAIN
Cranks Shimano FC-TY301 42/34/24T
Pedals Nylon body, Crmo axles,Platform
Chain KMC Z51, 1/2″x3/32
Bottom Bracket BBUN100 Sealed cartridge
Front Derailleur Shimano Tourney TY-500
Rear Derailleur Shimano Tourney TY-300
Derailleur Shifter Shimano EF-41 7-spd
Freewheel/Cassette MF-TZ31 Tourney Freewheel, 7-Speed 14-34T
WHEELS
Tires H-5129 27.5 x 2.2″
Wheels/Rims XD-180 alloy double wall
BRAKING SYSTEM
Brakes Promax TX-121 V-Brakes
Brake Levers Shimano EF-41
OTHER COMPONENTS
Grips/Tape Haro MTB Kraton
Handle Bar Pivit alloy 25mm riser bar 31.8mm
Stem Pivit melt forged, 31.8mm
Headset 1-1/8″ threadless Internal, loose ball, alloy 13mm top cone
Saddle Haro Flightline
Seat Post Pivit alloy micro adjust 30.9mm
Seat Clamp Pivit alloy 34.9mm quick release

GEOMETRY & SIZING



SIZE XS / 14 S / 16 M / 18 L / 20
A. Seat Tube (C-T) 356 406 457 508
B. Top Tube (Effective) 566 592 622 633
C. Head Tube Angle 70 70 70 70
D. Seat Tube Angle 72.5 72.5 72.5 72.5
E. Chainstay Length 428 428 428 428
F. BB Drop 38.5 38.5 38.5 38.5
G. Wheelbase 1042 1069 1098 1110
H. Head Tube Length 110 115 115 120
I. Standover 681 698 738 765
J. Stack Height 591 596 596 600
K. Reach 380 405 434 444
L. Fork Height 485 485 485 485
M. Fork Offset 33 33 33 33
N. Stem Length 60 70 70 90
O. Bar Width 680 680 700 700
P. Crank Length 170 170 175 175
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
