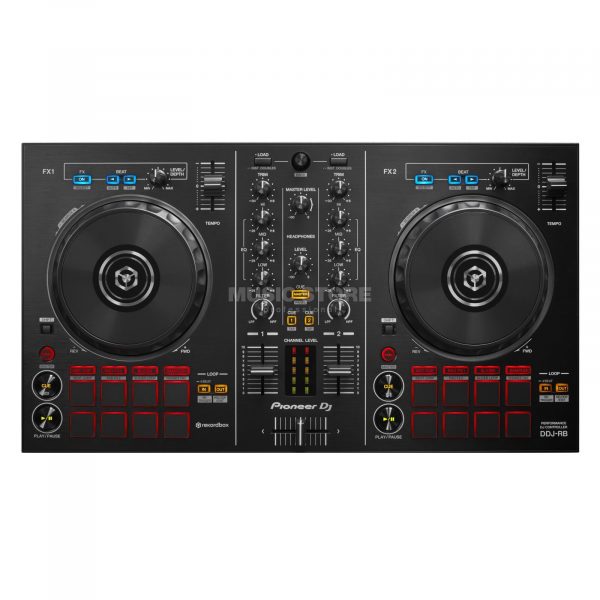

Pioneer DDJ-RB Portable 2 channel controller for Rekordbox DJ


Category:

Wishlist

Designed to work directly with the included rekordbox dj software, the entry level Pioneer DDJ-RB rekordbox dj Performance Controller provides 2 channels of DJ performance control and deep integration with rekordbox dj.

The ergonomic design features 8 velocity-sensitive performance pads on each deck with four modes of operation including Hot Cue, Pad FX, Slicer, and Sampler. The sequence call function allows you to create sample sequences, then select and play them directly on the hardware. The 5″ aluminum jog wheels are highly responsive for tactile performances.

The center panel of the Pioneer DDJ-RB includes a 2-channel mixer with an integrated sound card with a 1/4″ microphone input, stereo RCA master outputs, and an 1/8″ headphone output. Each channel features trim, a 3-band EQ, a HP/LP filter, and level fader. The Pioneer DDJ-RB is USB bus-powered and ships with a rekordbox dj license key and a USB cable.

Rekordbox DJ
  • You get a rekordbox dj license key bundled with this controller. Simply activate your license key for our DJ software, connect the controller and start DJing
Intuitive Layout
  • Mix instinctively with the jog wheels, play/cue buttons, mixer knobs and faders, gain pots, VU meter and dedicated loop buttons built to mirror the rekordbox dj layout
Performance Pads with Sequence Call
  • Create sample sequences then select and play them directly on the hardware using the Sequence Call button. Plus, trigger Hot Cues, Pad FX, Beat Jump and Slicer with 16 performance pads
PC Master Out
  • For flexibility, you can choose to hear your mix through your computer’s internal speakers, connected desktop speakers, or play through a wireless speaker. At the same time, you can use your headphones to cue independently of the master out
Built-In Sound Card
  • Thanks to a built-in sound card, the DDJ-RB connects straight to your speakers or amplifier via a single USB cable. Plus, you can record to rekordbox dj using the same USB connection
Portable Design
  • Take this controller with you wherever you go thanks to the easy grab handles and lightweight design. For simple plug-and-play connectivity you can choose between USB or AC power
Trim Pot and Level Meters
  • A trim pot and level meters put control of the volume of each track at your fingertips



Pioneer DJ DDJ-RB Specs

Software
Bundle Software rekordbox dj
Windows System Requirements Windows 10 / 8.1 / 7 (latest service pack)
CPU:
Intel processor Core i7, i5, i3
Intel processor Core 2 Duo 2.0 GHz or higher
Memory: 4 GB or more
Display Resolution: 1280 x 768 or higher
Mac System Requirements Mac OS X 10.11, 10.10, 10.9 (Updated to the latest version)
CPU:
Intel processor Core i7, i5, i3
Intel processor Core 2 Duo 2.0 GHz or higher
Memory: 4 GB or more
Display Resolution: 1280 x 768 or higher
Performance Controls
Performance Features Channels: 2
Deck Control: 2
Jog Wheel: 5.0″ / 128.0 mm durable aluminum jog wheel (center illumination)
Pad FX: Yes
Filter: High & Low Pass filter
Sampler: 16x slot with 4x bank
Hot Cues: 8
Sequence Call: Yes
Manual Loop: Yes
Beat Jump: Yes
Hardware
Inputs Mic: 1/4″ / 6.35 mm
Outputs Master Out: 2 x RCA
Headphone Outputs 1 x 1/8″ / 3.5 mm TRS stereo mini
USB Port 1 x USB type-B
Sample Rate 44.1 kHz
Bit Depth 24
Output Level Rated Output Level (Master Out): 2.1 Vrms / 10 kOhms
Frequency Response USB: 20 Hz to 20 kHz
S/N Ratio USB: 103 dB
Mic: 65 dB
THD USB: 0.005%
Input Impedance Mic: 3 kOhms or higher
Output Impedances Master Out: 1 kOhms or less
Phones: 10 Ohms or less
Operational Temperature 41 to 95°F / 5 to 35°C
Humidity Range Operating 5% to 85% (no condensation)
Power Power Supply: 5 VDC
Rated Current: 500 mA
Dimensions (W × H × D) 19.0 x 2.3 x 10.7″ / 482.6 x 58.5 x 272.4 mm
Weight 2.1 lb / 1.0 kg
Packaging Info
Package Weight 7.15 lb
Box Dimensions (LxWxH) 22.8 x 13.5 x 5.1″
