Specifications
- Series II, 2.4 GHz digital transmission
- 128-bit encryption
- Up to 100 meteres range
- OLED display (on receiver)
- One button pairing
- Three level gain control
- AA battery or USB powered
- Includes RØDE’s broadcast Lavalier microphone
Rode RodeLink Filmmaker Kit
Digital Wireless System for Filmmakers
RODELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres (over 100 yards).

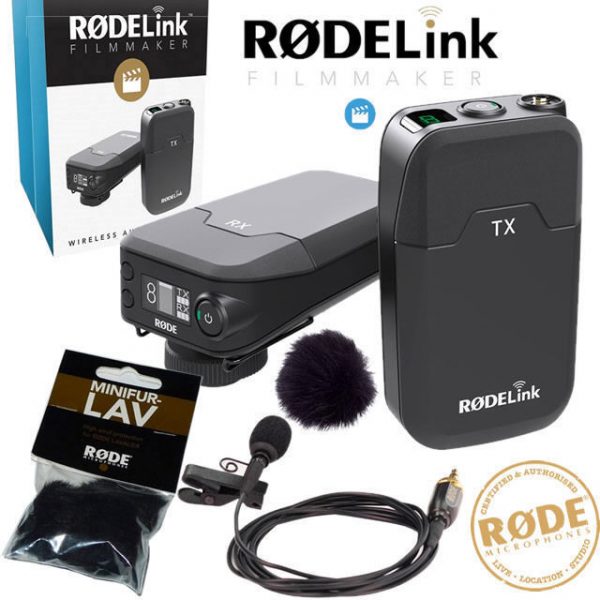

The RODELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8 inch thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RODE’s omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.
|
|
|
---|---|---|
|
|
|
---|---|---|
TX-BELT TransmitterAt a light 190 grams, the TX-BELT transmitter can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. It has a discreet, internal antenna with a 100 meter range and 3.5 millimeter TRS socket with dual mono output. Can be powered by 2 x AA batteries or microUSB. |
RX-CAM ReceiverThis receiver accepts the audio signal coming from up to 8 transmitter channels. It can be mounted on a camera shoe or also be clipped onto a belt or clothing.The OLED display clearly shows battery status, level, mute and channel selection. Finally, the 3.5 millimeter TRS locking jack socket sends audio directly to the camera or recording device. Can be powered by 2 x AA batteries or microUSB. |
Lavalier MicrophoneThis pressure gradient microphone can be clipped on to a person or object and the audio can be sent to the RX-CAM via the TX-BELT. It picks up frequencies from 60 Hz to 18 kHz, so you can be assured that whether your subject’s voice is high or deep the audio will be recorded with broadcast quality. And at 1 gram they won’t even know it’s there. |
RØDELink Filmmaker Kit Specifications
Transmission type | 2.4GHz Fixed Frequency Agile System |
System dynamic range | 112dB |
Range (distance) | Up To 100m |
Frequency range | 35Hz – 22kHz |
Maximum output level | 1v Rms (2.8v P-p) |
Max input signal level | 1v Rms (2.8v P-p) |
Max latency | 4ms |
Receiver (RX-CAM)
Power source | 2 X AA Battery Or MicroUSB |
Antenna | Internal |
Output connection | 3.5mm TRS Locking Jack Socket – Dual Mono |
Output impedance | 300Ω |
Dimensions | 111mm X 65mm X 52mm |
Weight | 190gm |
Transmitter (TX-BELT)
Power source | 2 X AA Battery Or MicroUSB |
Antenna | Internal |
Input connection | 3.5mm TRS Locking Jack Socket |
Input impedance | 10kΩ |
Dimensions | 111mm X 65mm X 40mm |
Weight | 190gm |
Lavalier
Acoustic Principle | Permanently Polarized |
Active Electronics | JFET impedance converter |
Capsule | 0.10″ |
Address Type | End |
Frequency Range | 60Hz – 18kHz |
Output Impedance | 3000Ω |
Maximum SPL | 110dBSPL |
Maximum Output Level | 189.0mV |
Sensitivity | -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) | 25dB-A |
Weight | 1.00gm |
Dimensions | 12.00mmH x 4.50mmW x 4.50mmD |
