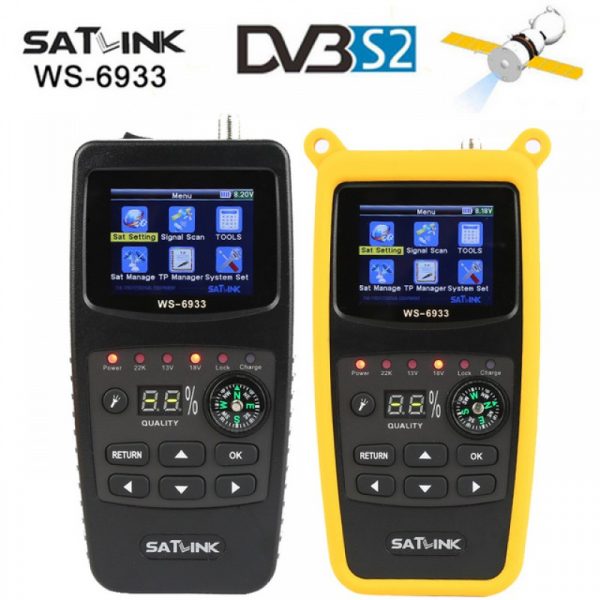

Satlink WS-6933 DVB-S2 FTA C&KU Band Digital Satellite Finder Meter
The device finds the desired satellite in seconds.
The backlight function can provide lighting.
The Satlink WS-6933 HD is a compact Satellliten search engine.
The device has a static NIT recognition to securely identify a received satellite signal.
If a satellite finds an audible sound signal and the measured values are displayed.
Satellite search, the satellite dish can contrast with traditional instruments that are activated very quickly.
Specification:
Size: Approx. 7.7 x 17 x 3.5 cm / 3.03 x 6.69 x 1.37 “
Plug type: EU plug (shipped with an adapter according to your country)
Input frequency: 950 ~ 2150MHz
Entry level: -65 ~ -25dBm
Control switch band: 22 kHz
Supply of LNB: 13v / 18v, IMAX.300mA
Type of demodulation: QPSK / 8OSK / 16APSK / 32APSK
Symbol rate: 2<rs<45mband (scpc=”” mcpc)<=”” span=””></rs<45mband>
LCD Type: TFT Positive Transflective
Number of points: 240 (RGB) x 320
Active area (width x height): 36.72 x 48.96 mm²
Usb connector
Data protocol: USB to RS-232
Li-ion battery: 7.4v / 800mah
Output: DC 12V / 1A
Input: 100-240V AC, 50 / 60Hz
Power consumption: MAX. 5W
Package included:
1 x Search signal meter
1 x protective rubber cover
1 x power adapter
1 x USB cable
1 x safety rope
1 x user manual
Detail pictures:
Front view
Top view – input connector and ON/OFF switch
Right side view – power jack and USB port
The included accessories
View of the packaging
