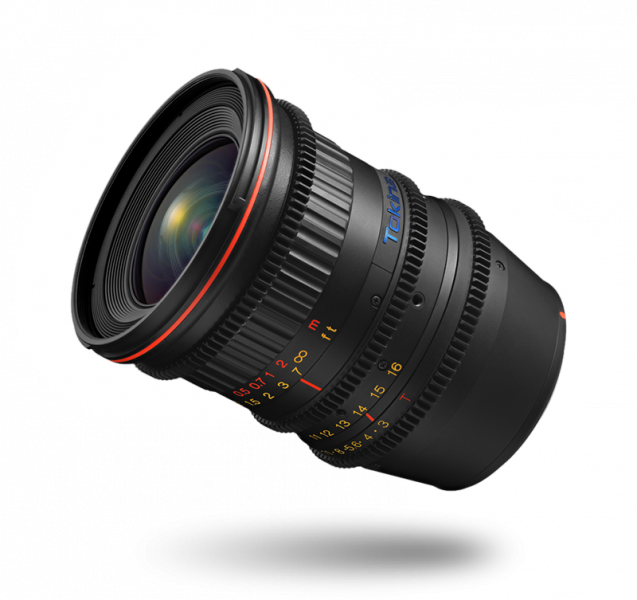

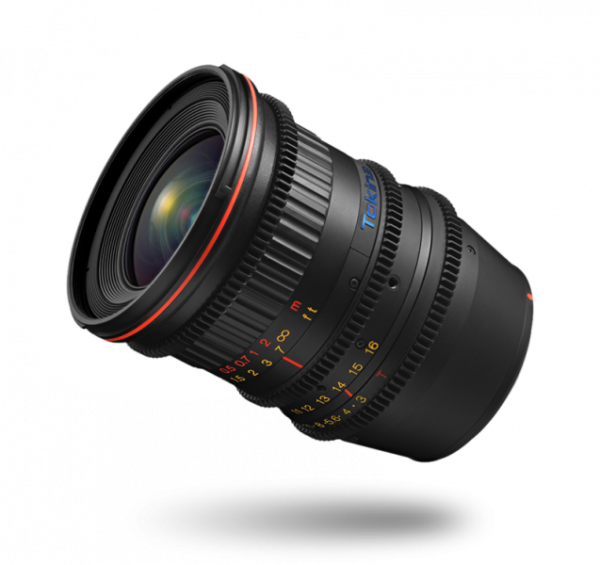

Tokina 11-16mm T3.0 Cinema MFT Mount
The Cinema 11-16mm T3.0 with Micro Four Thirds Mount Mount is a wide-angle zoom lens for APS-C or Super-35 sized sensors and features a Micro Four Thirds lens mount. The lens uses the same distortion-free design and optical performance of Tokina’s 11-16mm f/2.8mm DSLR lens, but puts it into an all-metal housing optimized for video and digital cinema use. The housing provides manual focus control with an easy-to-read distance scale and a de-clicked aperture ring for smooth iris pulls. The focus, aperture, and zoom rings all have standard cine-style gears for use with follow focus systems.
In addition to the new housing, the lens also has been updated with a parfocal design that allows you to maintain focus on your subject while zooming. The Tokina 11-16mm T3.0 utilizes two super-low dispersion and two aspherical lens elements to produce images with high contrast and sharpness, while multi-layer coating help minimize flare and ghosting.
-
- Ultra-wide angle T3.0 zoom lens
- Covers APS-C and Super-35-sized sensors
- Parfocal lens design
- 4K image sharpness
- Rugged all-metal lens housing
- 0.8 MOD cine-style geared focus, aperture, and zoom rings
- 9-blade aperture diaphragm
- 77mm filter diameter
- Min. focus distance of 13.78″
Tokina 11-16mm Specs
| Focal Length | 11 – 16mm |
| Lens Mount | Micro Four Thirds |
| Format | Super35/APS-C |
| Maximum T-Stop | T3.0 |
| Maximum F-Stop | f/2.8 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Super35: 104 – 84° |
| Minimum Focus Distance from Image Plane | 13.78″ / 35 cm |
| Optical Design | 13 Elements in 11 Groups |
| Iris Blades | 9 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Front Diameter | 84 mm |
| Filter Thread | 77 mm |
| Zoom Ratio | 1.45x |
| Maximum Magnification Ratio | 1:4.94 |
| Dimensions (W x H) | 3.27 x 3.27″ / 83.1 x 83.1 mm |
| Length | 4.8″ / 120.7 mm |
| Weight | 1.7 lb / 0.8 kg |
| Packaging Info | |
|---|---|
| Package Weight | 2.45 lb |
| Box Dimensions (LxWxH) | 9.0 x 5.5 x 4.6″ |
