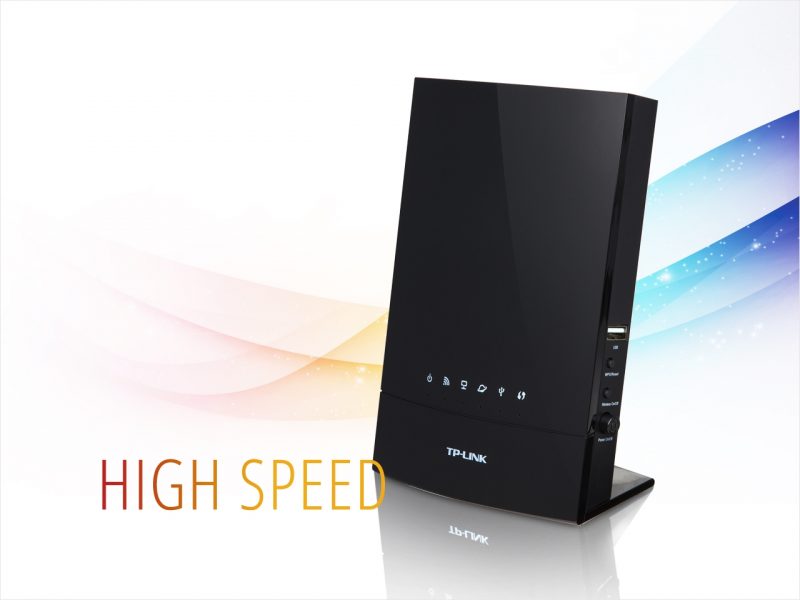

TP-LINK C20i AC750 Archer Dual Band Wireless AC Router



TP-LINK Archer C20i AC750 Dual Band Wireless AC Router, 2.4GHz 300Mbps+5Ghz 433Mbps, Stand Design, 1 USB Port, IPv6, Guest Network

733Mbps dual band connections for work and leisure without latency

The Archer C20i uses both 2.4 and 5 GHz Wi-Fi bands. Simultaneous use of both bands allows you to achieve a bitrate of up to 733Mbps . In detail, it reaches 433Mbps in 5 GHz and 300Mbps in 2.4GHz. Simultaneous use of both bands gives you the flexibility to use two dedicated networks, with a comfortable bandwidth reserve for all your needs. Simple tasks such as sending e-mail or browsing can be assigned to the 2.4 GHz band, while bandwidth consuming tasks such as online gaming, HD video broadcasting can be supported by 5 GHz band, all at the same time.

Dual band operating diagram!

Multiple sharing functions!

With its multifunction USB 2.0 port , you can share printers, files and media with multiple devices. Through your local network or via the FTP server when you are on the move, access your files easily. Moreover, the Wi-Fi guests network provides wireless access to your guests by isolating them from your home or work network, to ensure their security . You also have parental controls that allow parents or administrators to set access restriction policies for children or collaborators.

Included in the resource CD or available for download, the Setup Utility helps you set up software and wireless networking in minutes.

Archer C20i Tp-Link: sharing functions


Interface 4 10/100 LAN ports
1 10/100 WAN port
1 USB 2.0 port
Button WPS/Reset Button
Wireless On/Off Button
Power On/Off Button
Antenna 3 internal antennas
External Power Supply 12VDC /1A
Dimensions ( W x D x H ) 4.44 x 2.36 x 6.73 in. (113 x 60 x 171mm)
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz
11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm
11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm,
11n HT20: -71dBm, 11n HT40: -69dBm
11g 54M: -74dBm
11n HT20: -72dBm, 11n HT40: -69dBm
Transmit Power CE:
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec
Access Control Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filtering/MAC Address Filtering/Domain Filtering
IP and MAC Address Binding
Protocols Supports IPv4 and IPv6
USB Sharing Support Samba(Storage)/ FTP Server/Media Server/Printer Server
Guest Network 2.4GHz guest network × 1
5GHz guest network × 1
Certification CE, FCC, RoHS
Package Contents AC750 Wireless Dual Band Router Archer C20i
Power Supply Unit
Resource CD
Ethernet Cable
Quick Installation Guide
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
ac1200 ac1200 wifi router wifi router wifi router
Archer C20i Archer C50 Archer C1200 Archer C7 Archer C9 – Amazon’s Choice for Essential Wi-Fi Router Archer C2300
Wireless Spec AC750 AC1200 AC1200 AC1750 AC1750 AC2300
Wi-Fi Speed Up to 750Mbps Up to 1167Mbps Up to 1167Mbps Up to 1750Mbps Up to 1900Mbps Up to 2225Mbps
CPU Processor Single-Core Single-Core Single-Core Single-Core 1GHz Dual-Core 1.8GHz Dual-Core
Ethernet Ports 4x Fast Ethernet 4x Fast Ethernet 4x Gigabit 4x Gigabit 4x Gigabit 4x Gigabit
USB Ports 1x USB 2.0 1x USB 2.0 1x USB 2.0 2x USB 2.0 1x USB 3.0 + 1x USB 2.0 1x USB 3.0 + 1x USB 2.0
Antennas 3x Internal 2x External 3x External 3x External + 3x Internal 3x External 3x External
Online Gaming and 4K HD Video Streaming
Guest Network, Parental Controls, and IPv6 Support
