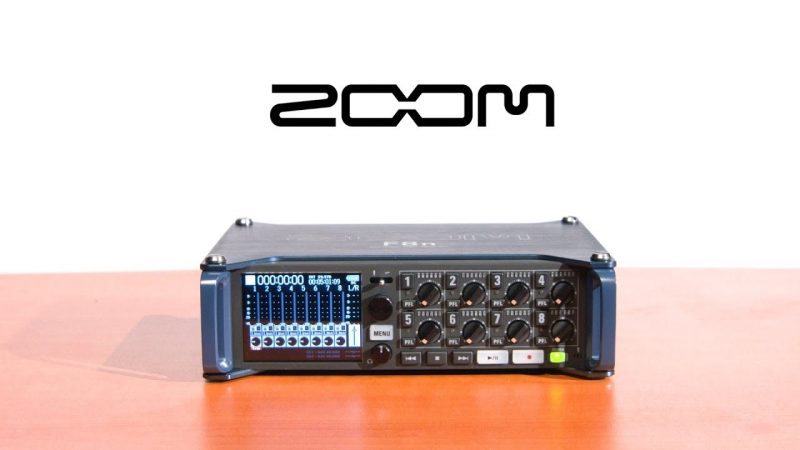

Name: Zoom F8n 8-Input / 10-Track Multi-Track Field Recorder
Brand: Tech Nuggets
SKU: -
Availability: InStock
Rating: 5 (1 reviews)

With the Zoom F8n, it was our mission to provide every sound professional with the tools to create something exceptional. With features such as Advanced Look-Ahead Hybrid Limiters, Zoom AutoMix, and mic/line options for both XLR and TRS inputs, the F8n is the next generation of professional field recording.

F8n Features

8-channel/10-track field audio recorder/mixer
High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
Advanced Look-Ahead Hybrid Limiters
Zoom AutoMix software
High pass filter, phase invert, and Mid-Side decoder
Dual SD/SDHC/SDXC card slots, up to 512 GB each

A Recorder You Can Depend On. Every Day.


Advanced Look-Ahead Hybrid Limiters The F8n’s Advanced Look-Ahead Hybrid Limiters add a 1 millisecond delay, enabling them to “look ahead” and anticipate clipping before it’s recorded. Limiting can be applied individually to all 8 channels simultaneously at full resolution, with 10 to 20 dB of headroom.	Mic Preamps The F8n’s Mic/line levels are selectable for both XLR and TRS. With a super-low noise floor (−127 dBu EIN) and high gain (up to 75 dB) it also boasts some of our finest preamps.	Zoom AutoMix When active, Zoom AutoMix automatically adjusts the levels of your mix, reducing the amount of ambient sound and freeing you up to focus on the overall composition.	State-Of-The-Art Time Code The F8n’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy when powered on and maintains up to 0.2 ppm accuracy when powered off. Time code I/O is provided on BNC connectors with support for all standard dropframe and non-drop formats.

iOS Wireless Control

Control the F8n wirelessly from your iPhone or iPad using the Zoom F8 Control App. Access mixer pan levels, fader levels and transport controls while monitoring time code, inputs and battery status. You can even enter file and metadata info directly through the app.

Zoom F8n

Portable Recorder

Number of Tracks	WAV: 10 (8 Inputs + Stereo Mix) MP3: 2
Max Sample Rate/Resolution	192 kHz / 24-Bit
Microphone	Built-In Slate Mic
Built-In Speaker	No
Display	Color LCD (Backlit)
Memory Card Support	SD (16 MB to 2 GB) SDHC (4 to 32 GB) SDXC (64 to 512 GB)
Internal Storage	None

Recording

Audio File Formats	BWF, ID3v1, MP3, WAV, iXML
Sample Rates	WAV: 44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz MP3: 44.1 / 48 kHz
Bit Depth	16/24-Bit
Bit Rates	128 to 320 kb/s
Signal Processing	Limiter
Timecode	Yes
Frame Rates Supported	23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF
Clock Accuracy	±0.2 ppm
Recording Time	WAV 48 kHz/24-Bit: 57.8 Mins per GB (Stereo) WAV 192 kHz/24-Bit: 14.4 Mins per GB (Stereo)

Connectivity

Analog I/O	8 x Combo XLR-1/4″ TRS Female Line/Mic Input (Lockable) 1 x Proprietary Mic Capsule Input 2 x TA3 3-Pin Male Balanced Line Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/4″ TRS Female Unbalanced Headphone Output
Digital I/O	1 x BNC Timecode Input 1 x BNC Timecode Output
Phantom Power	+24 / 48 V (Selectable on Individual Inputs)
Phantom Power Current	≤10 mA per Channel
Host Connection	1 x Mini-USB (USB 2.0)

Performance

Frequency Response	10 Hz to 80 kHz +0.5/-1 dB (At 192 kHz)
Gain Range	Mic Inputs: +10 to +75 dB Line Inputs: -10 to +55 dB
Max Input Level	Mic Inputs: +14 dBu (Limiter On, at 0 dBFS) Line Inputs: +24 dBu (Limiter On, at 0 dBFS)
Max Output Level	Outputs: +24 dBu Aux Outputs: +10 dBV
Headphone Output Power	100 mW per Channel into 32 Ohms
Dynamic Range	A/D Converters: 120 dBA D/A Converters: 106 dBA
Impedance	Mic Inputs: 2 kOhms Line Inputs: 2.6 kOhms Balanced Outputs: ≤150 Ohms Aux Outputs: ≤100 Ohms Headphone Outputs: ≤15 Ohms BNC Inputs: 4.6 kOhms BNC Outputs: ≤50 Ohms
EIN	≤-127 dBu (A-Weighted)

Power

Power Options	Batteries or AC/DC Power Adapter
Battery Type	8 x AA (Not Included)
Approximate Battery Life	48 kHz/16-Bit: 6 Hours (Alkaline, 2 Channels) 8.5 Hours (Alkaline, 2 Channels) 12 Hours (Lithium, 2 Channels) 48 kHz/24-Bit: 3.5 Hours (Alkaline, All Channels) 6 Hours (NiMH, All Channels) 8 Hours (Lithium, All Channels) 192 kHz/24-Bit: 1 Hour (Alkaline, All Channels) 2 Hours (NiMH, All Channels) 3 Hours (Lithium, All Channels)
AC/DC Power Adapter	12 VDC at 2 A (Included)
