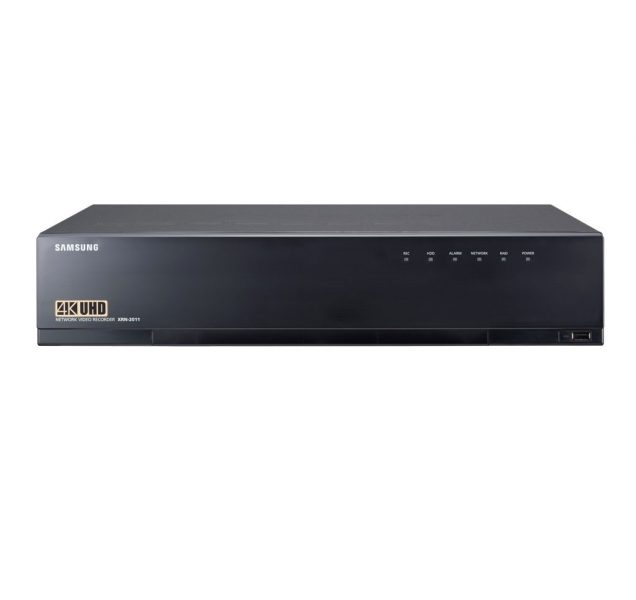

Samsung / Hanwha XRN3010 Network Video Recorder
Product Details
The XRN-3010-4TB from Samsung is a 64CH 4K network video recorder, H.265/H.264/MJPEG, ARB (Automatic Recovery Backup), 8 fixed internal SATA HDDs (64TB max), e-SATA/iSCSI storage, WiseStream technology, dual monitor out, max. resolution of 12MP recording/displa1y and fisheye dewarping on web and CMS.
Features
- 64CH, Max. 12megapixel camera supported
- Max. 300Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support Dual monitor video out
- Support H.265, H.264, MJPEG compression
- WiseStream support
- Max. 8 internal HDDs (64TB), e-SATA storage support
- ARB & Failover (N+1) support
XRN-3010 Specification
| Display | ||
| Video | Inputs | Up to 64CH |
| Resolution | CIF ~ 12MP | |
| Protocols | Samsung, ONVIF | |
| Live | Local Display | 1x HDMI, 1x VGA dual monitor |
| Multi Screen Display | [Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence |
|
| Performance | [Local monitor] 12MP (30fps), 8.3MP (120fps), 1080p (480fps), 720P (960fps), D1 (1560fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Recording | Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) |
| Recording Bandwidth | Max. 300Mbps | |
| Resolution | CIF ~ 12MP | |
| Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post) | |
| Event Trigger | Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics, Defocus) | |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Playback | Playback Bandwidth | 32Mbps (16CH simultaneously) |
| Performance | Max. 4 users (Local 1, Remote 3) | |
| Mode | Date & Time (Calendar) / Event log list / Text search / ARB search / Smart search (Virtual line w/direction, Enter / Exit) | |
| Simultaneous Playback | Max. 16CH (Local monitor, CMS) | |
| Resolution | CIF ~ 12MP | |
| Fish-eye Dewarping | WEB / CMS | |
| Playback Control | Fast/Slow Forward/Backward, Move one step up/down | |
| Storage | Default Built-In | 0TB ~ 8TB |
| Internal HDD | 8 (Max. 64TB) | |
| Backup | File Backup (Via Web) | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 16CH) play, Date-time/title display | |
| Sensor | Input / Output | 8 / 4 (NO/NC selectable) |
| Audio | Input | 64CH (Network) |
| Compression | G.711, G.726, AAC (16/48KHz) | |
| Audio Communication | 2-way | |
| Network | ||
| Interface | RJ-45, Gigabit ethernet x 2 | |
| Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Hanwha security DDNS | |
| Transmission | Bandwidth | 512Mbps |
| Max. Remote | Users | Search 3 / Live unicast 10 / Live multicast 20 |
| IP | IPv4 / IPv6 | |
| Security | IP address filtering, User access log, 802.1x authentication, Encryption | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| OS | Window 7, 8, 10, Mac OS X (10.8 or above) | |
| Web Browser | MS IE, Google Chrome, Mac Safari, Firefox | |
| Viewer Software | Type | SSM, Webviewer, SmartViewer, iPOLiS mobile viewer |
| CMS Support | SDK / CGI (SUNAPI) | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Setup Items | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/ Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view setup, Camera webpage | |
| PTZ | Control / Preset | Via GUI, Webviewer, SPC-2000 / 255 presets |
| Smart Phone | OS | Android, iOS |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Control | Live (16CH) : Multi-profile support, Playback (1CH) | |
| Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | |
| Redundancy | Failover / ARB | N + 1 (Include fail-back) / Yes |
| System Control | Mouse, Web, SPC-2000 (Controller) | |
| Indicator / Interface | ||
| Front | Indicator | LED (Status indicator) : 6ea HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network1 |
| Connections | VGA | Sub : 1ea (Support live screen up to 16 div. mode) |
| HDMI | Main : 1ea (Both support Live / PB / Setup) Support up to 4K (3840 x 2160, Single monitor mode) |
|
| Audio | Out 1ea (RCA, Line) | |
| Ethernet | RJ-45 2ea (LAN/WAN, 1Gbps) | |
| Alarm | In 8ea (Terminal block), Alarm reset 1ea Out 4ea (Terminal block) – Relay out1(NO/NC/COM) – Relay out 2 ~ 4 (NO/COM) |
|
| USB | 2ea (Front 1, Rear 1) | |
| Storage | 1 e-SATA | |
| Serial / Reset | RS-232C / Switch 1ea | |
| Power Cord | 1ea AC Inlet | |
| System | ||
| Log | Log List | Max. 20,000 (System log, Event log each) |
| General | ||
| Electrical | Input Voltage / Current | 100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A |
| Power Consumption | Max. 99W (338BTU, 8TB HDD x 8ea) | |
| Environmental | Operating Temperature | +0°C ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 20% ~ 85% RH | |
| Mechanical | Color / Material | Black / Metal |
| Dimensions (WxHxD) | 440.0 x 88.0 x 384.8mm (17.32″ x 3.46″ x 15.15″) (2U) | |
| Weight | 4.86Kg (10.71 lb) (without HDD) | |
